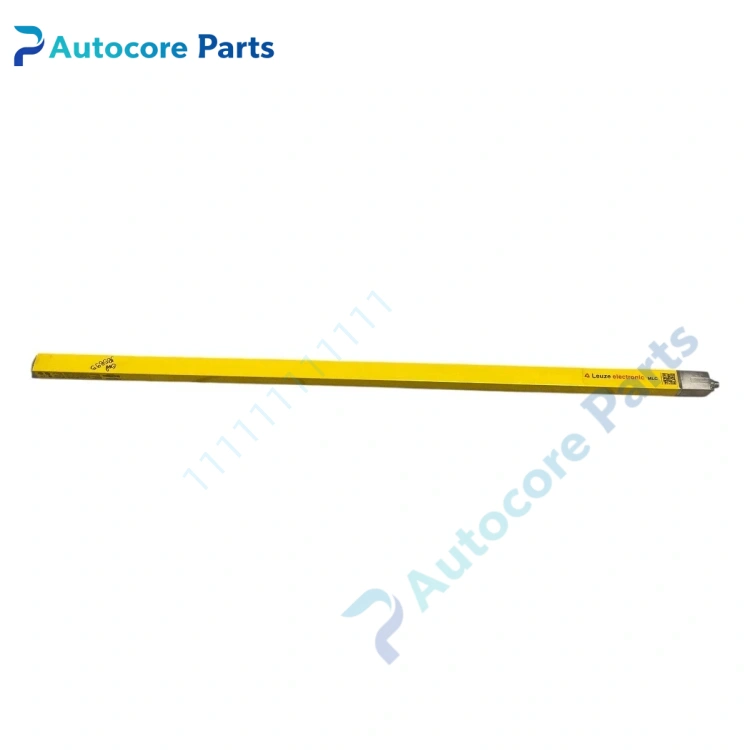

Leuze MLC510R30 Safety Light Curtain Receiver

Feature & Principle

It is the receiver unit of Leuze MLC500 series safety light curtain. It works with matched transmitter to form a multi-beam through-beam safety barrier. When an object breaks the infrared light beams, the OSSD safety output will switch off to stop hazardous machine movement. It adopts optical synchronization without extra sync wiring, supports automatic start-restart function. It meets Type4 safety standard, SIL3 and PL e, reliable for hand protection of presses, packaging and robot stations.

Specifications

Model: MLC510R30 Brand: Leuze Series: MLC500 Resolution: 30 mm Safety category: Type4 SIL: SIL3 Performance level: PL e Output: Dual OSSD safety outputs Supply voltage: 24 VDC Synchronization: Optical synchronization Ingress protection: IP67 Application: Punch machine, packaging machine, robot cell hand protection Certification: IEC61496, IEC61508, ISO13849

Components & Diagnostics

Infrared receiving array, signal processing board, safety output circuit, status LED indicator, metal housing and M12 connector. Common faults: beam misalignment, optical window contamination, OSSD output failure, wiring short circuit.

Product Brief

MLC510R30 safety light curtain receiver, Leuze MLC500 safety protection spare widely used for automation equipment safety overhaul and replacement.
