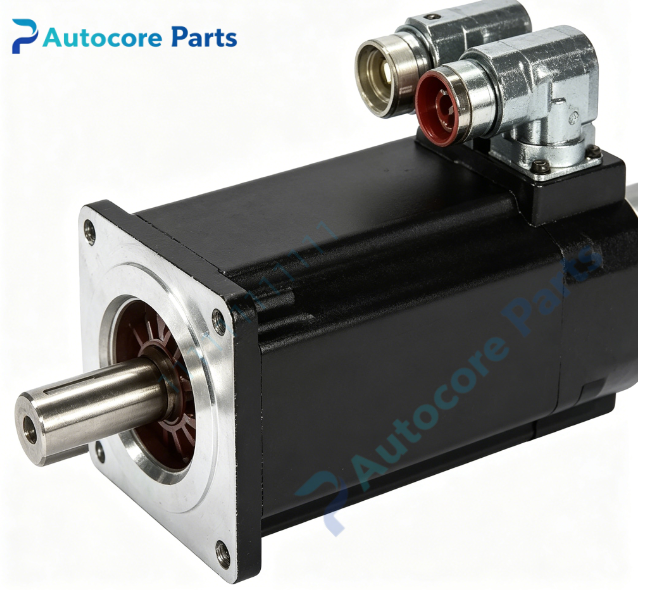

Kollmorgen AKM42E-ANCNGB00 Servo Motor Spare Part

Technical Specifications

Model:AKM42E-ANCNGB00

Brand:Kollmorgen

Part No:AKM42E-ANCNGB00

Product type:Permanent magnet AC synchronous servo motor

Rated power:4.3kW

Rated speed:3000rpm

Continuous torque:13.7Nm

Peak torque:39.4Nm

Max DC bus voltage:320V DC

Protection class:IP54

Dimension:285mm142mm150mm

Weight:9.28kg

Feedback interface:SFD smart digital feedback device

Mounting:142mm IEC flange mounting

Operating temperature:0~40℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Certification:CE,UL

System compatibility

AKM42E-ANCNGB00 belongs to Kollmorgen AKM servo motor family,matched with Kollmorgen AKD series servo drives,widely used in machine tools,packaging machinery,material handling and heavy-load precision multi-axis automation systems.This is industrial spare part for equipment overhaul and maintenance.

Function

AKM42E-ANCNGB00 is large frame AKM synchronous servo motor.It features ultra-low cogging torque and smooth rotation performance.SFD smart feedback supports automatic motor identification when paired with AKD servo drives,high precision position detection.High energy density rare-earth permanent magnet rotor delivers excellent overload capacity,this model is with built-in 24V DC holding brake,keyway shaft and shaft seal.

Installation

Install AKM42E-ANCNGB00 via IEC flange mounting on machine fixture.Connect motor power cable,SFD feedback cable and brake power cable.Tighten mounting bolts and connector locking rings,separate power and signal wiring,complete shielding grounding before power-on test.

Interface

‑3 phase motor power connector

‑SFD digital feedback connector

‑24V DC brake terminal

‑Shield grounding terminal

Feature

AKM42E-ANCNGB00 Kollmorgen servo motor.Typical faults:winding insulation aging,SFD feedback element damage,bearing wear,brake failure,connector pin oxidation.Test winding resistance,insulation resistance and feedback signal before replacement.

Diagnostic

Motor faults will trigger overload,overcurrent or feedback loss alarm;motor jitter,position tracking error,brake release failure,motor fails to start,intermittent positioning deviation.

Built‑in function:Convert electrical command into precise mechanical torque,realize high accuracy speed and position closed-loop control,as Kollmorgen AKM series large frame servo motor spare replacement.

Product Brief

AKM42E-ANCNGB00 is Kollmorgen AKM 4.3kW servo motor,142mm flange,SFD smart feedback,with 24V holding brake,key shaft,compatible with AKD servo drives for heavy-load automation equipment maintenance.Confirm feedback type and shaft specification before ordering.ESD protection required during handling and installation.
