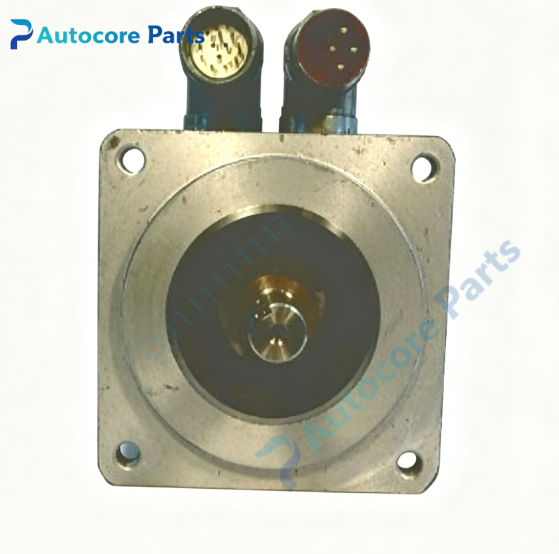

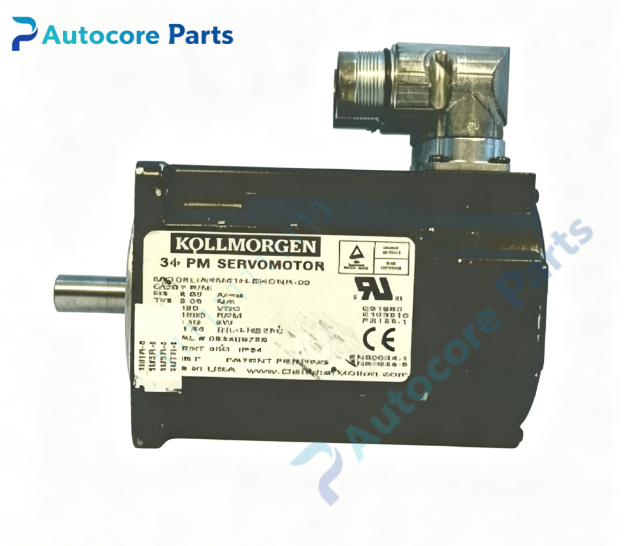

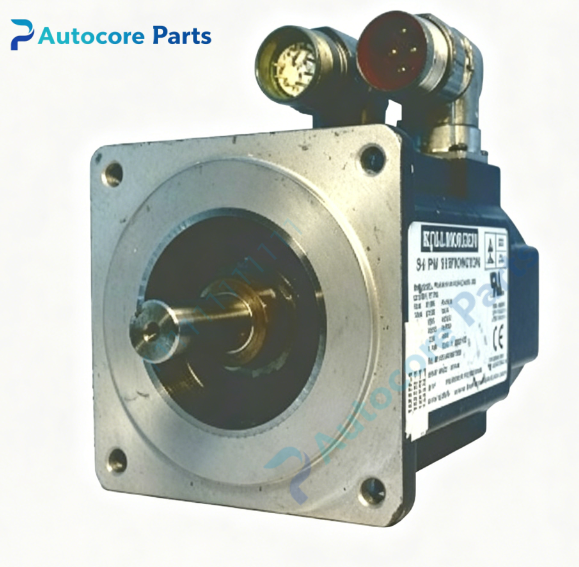

Kollmorgen AKM41H-BKCNR-00 Servo Motor Spare Part

Technical Specifications

Model:AKM41H-BKCNR-00

Brand:Kollmorgen

Part No:AKM41H-BKCNR-00

Product type:Permanent magnet AC synchronous servo motor

Rated power:3.7kW

Rated speed:3000rpm

Continuous torque:11.8Nm

Peak torque:34.2Nm

Max DC bus voltage:320V DC

Protection class:IP54

Dimension:275mm142mm150mm

Weight:8.42kg

Feedback interface:SFD smart digital feedback device

Mounting:142mm IEC flange mounting

Operating temperature:0~40℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Certification:CE,UL

System compatibility

AKM41H-BKCNR-00 belongs to Kollmorgen AKM servo motor family,matched with Kollmorgen AKD series servo drives,widely used in machine tools,packaging machinery,material handling and heavy-load precision multi-axis automation systems.This is industrial spare part for equipment overhaul and maintenance.

Function

AKM41H-BKCNR-00 is large frame AKM synchronous servo motor.It features ultra-low cogging torque and smooth rotation performance.SFD smart feedback supports automatic motor identification when paired with AKD servo drives,high precision position detection.High energy density rare-earth permanent magnet rotor delivers excellent overload capacity,this model is without built-in holding brake,keyway shaft.

Installation

Install AKM41H-BKCNR-00 via IEC flange mounting on machine fixture.Connect motor power cable and SFD feedback cable.Tighten mounting bolts and connector locking rings,separate power and signal wiring,complete shielding grounding before power-on test.

Interface

‑3 phase motor power connector

‑SFD digital feedback connector

‑Shield grounding terminal

Feature

AKM41H-BKCNR-00 Kollmorgen servo motor.Typical faults:winding insulation aging,SFD feedback element damage,bearing wear,connector pin oxidation.Test winding resistance,insulation resistance and feedback signal before replacement.

Diagnostic

Motor faults will trigger overload,overcurrent or feedback loss alarm;motor jitter,position tracking error,motor fails to start,intermittent positioning deviation.

Built‑in function:Convert electrical command into precise mechanical torque,realize high accuracy speed and position closed-loop control,as Kollmorgen AKM series large frame servo motor spare replacement.

Product Brief

AKM41H-BKCNR-00 is Kollmorgen AKM 3.7kW servo motor,142mm flange,SFD smart feedback,without holding brake,key shaft,compatible with AKD servo drives for heavy-load automation equipment maintenance.Confirm feedback type and shaft specification before ordering.ESD protection required during handling and installation.
