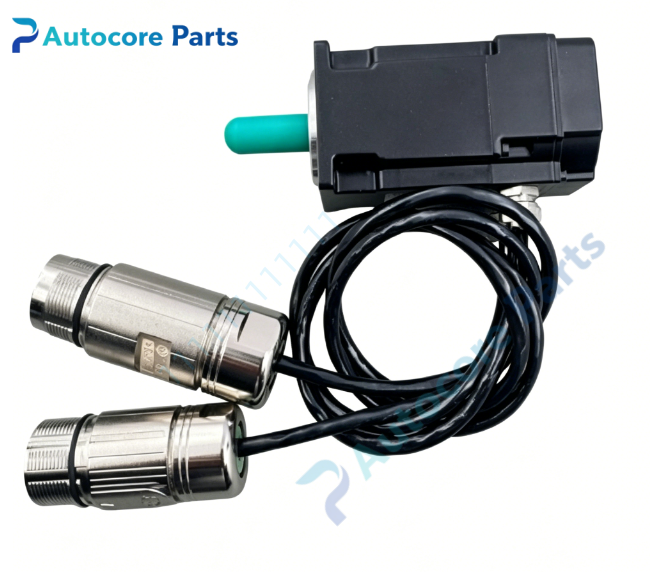

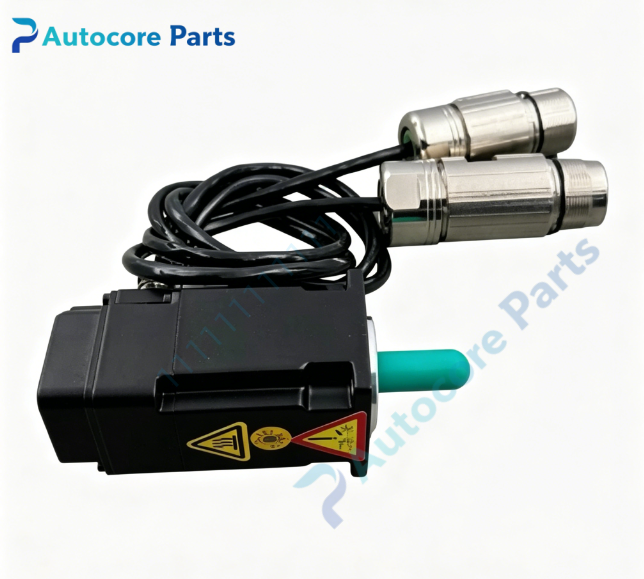

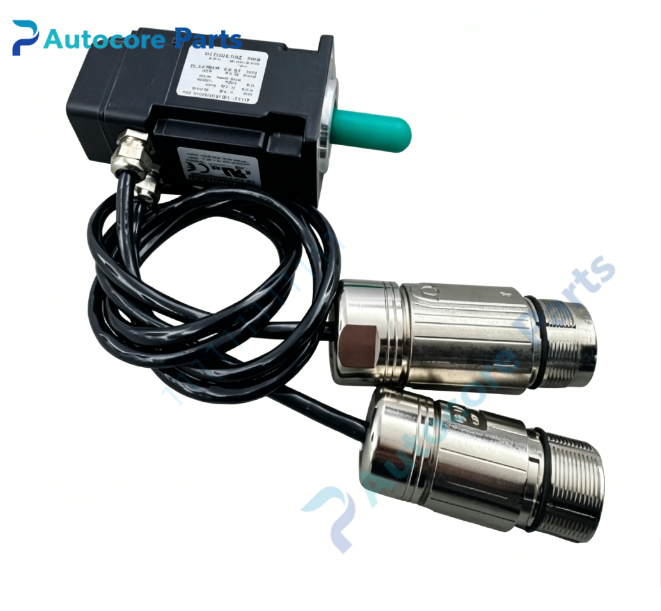

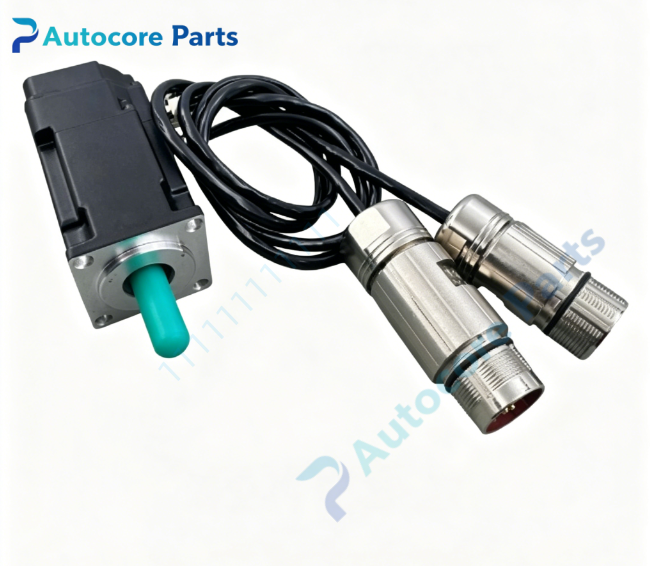

Kollmorgen AKM11B-ANCNR-00 Servo Motor Spare Part

Technical Specifications

Model:AKM11B-ANCNR-00

Brand:Kollmorgen

Part No:AKM11B-ANCNR-00

Product type:Permanent magnet AC synchronous servo motor

Rated power:0.14kW

Rated speed:8000rpm

Continuous torque:0.18Nm

Max DC bus voltage:320V DC

Protection class:IP40

Dimension:95mm45mm55mm

Weight:0.56kg

Feedback interface:SFD smart digital feedback device

Mounting:40mm IEC flange mounting

Operating temperature:0~40℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Certification:CE,UL

System compatibility

AKM11B-ANCNR-00 belongs to Kollmorgen AKM servo motor family,matched with Kollmorgen AKD series servo drives,widely used in electronic equipment,small positioning platforms,dispensing machinery and light-duty multi-axis automation systems.This is industrial spare part for equipment overhaul and maintenance.

Function

AKM11B-ANCNR-00 is compact small-frame AKM synchronous servo motor.It features ultra-low cogging torque and smooth rotation performance.SFD smart feedback supports plug-and-play motor recognition with AKD servo drive,high-resolution position detection.The motor adopts high energy density permanent magnet rotor,good dynamic response,suitable for high-speed light-load precision positioning applications,this version is without built-in holding brake.

Installation

Install AKM11B-ANCNR-00 via IEC flange mounting on machine fixture.Connect motor power cable and SFD feedback cable.Tighten mounting bolts and connector locking rings,separate power and signal wiring,complete shielding grounding before power-on test.

Interface

‑3 phase motor power connector

‑SFD digital feedback connector

‑Shield grounding terminal

Feature

AKM11B-ANCNR-00 Kollmorgen servo motor.Typical faults:winding insulation aging,SFD feedback element damage,bearing wear,connector pin oxidation.Test winding resistance,insulation resistance and feedback signal before replacement.

Diagnostic

Motor faults will trigger overload,overcurrent or feedback loss alarm;motor jitter,position tracking error,motor fails to start,intermittent positioning deviation.

Built‑in function:Convert electrical command into precise mechanical torque,realize high accuracy speed and position closed-loop control,as Kollmorgen AKM series compact servo motor spare replacement.

Product Brief

AKM11B-ANCNR-00 is Kollmorgen AKM 0.14kW compact servo motor,40mm flange,SFD smart feedback,high speed design,compatible with AKD servo drives for light-duty automation equipment maintenance.Confirm feedback type and shaft specification before ordering.ESD protection required during handling and installation.
