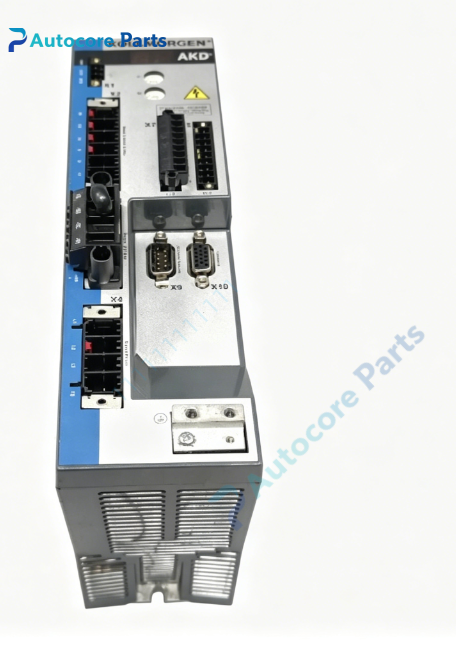

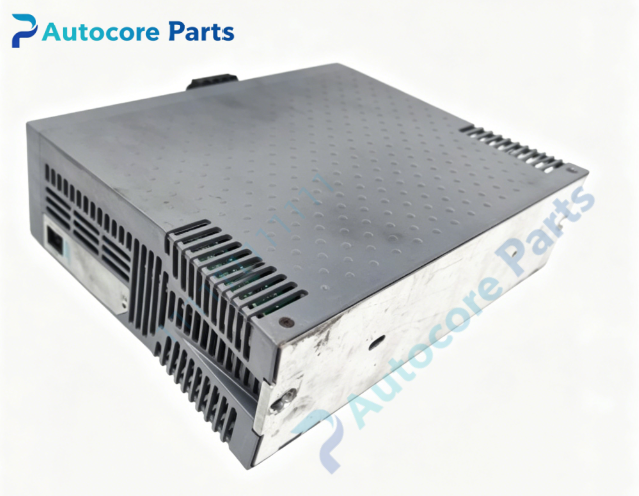

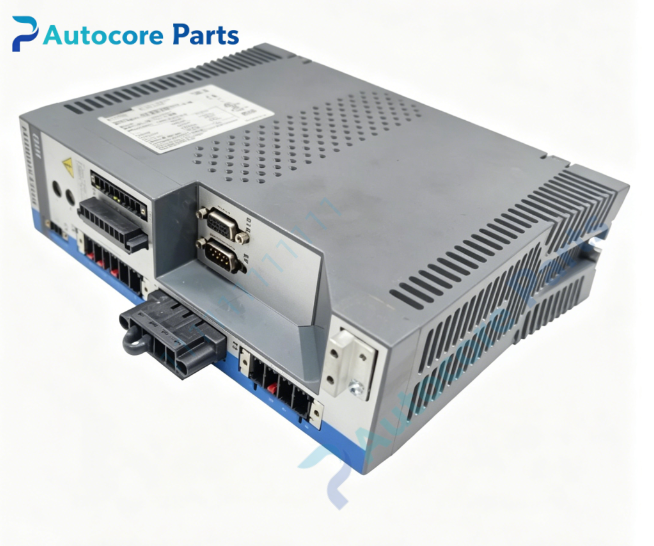

Kollmorgen AKD-P01207-NBCC-1000 Servo Drive Spare Part

Technical Specifications

Model:AKD-P01207-NBCC-1000

Brand:Kollmorgen

Part No:AKD-P01207-NBCC-1000

Product type:Digital servo drive

Input voltage:3 phase 240/480V AC,50/60Hz

Continuous output current:12A RMS

Peak output current:36A RMS

Rated output power:5.5kW

Dimension:180mm55mm165mm

Weight:1.45kg

Feedback interface:Resolver, incremental encoder, SFD, BiSS

Fieldbus:EtherCAT

Mounting:DIN rail mounting

Protection class:IP20

Operating temperature:0~40℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Certification:CE,UL

System compatibility

AKD-P01207-NBCC-1000 belongs to Kollmorgen AKD servo drive family,matched with Kollmorgen AKM,2G series synchronous servo motors,widely used in machine tools,packaging machinery,cutting equipment and medium-duty multi-axis positioning systems.This is industrial spare part for equipment overhaul and maintenance.

Function

AKD-P01207-NBCC-1000 is high performance motion tasking servo drive.It supports torque,speed and position control mode.High bandwidth current and position loop deliver outstanding dynamic response.Multiple feedback interfaces compatible with various Kollmorgen servo motors,4-quadrant regenerative braking,supports energy feedback to DC bus.Built-in digital I/O for trigger and interlock,parameter configuration via Kollmorgen WorkBench software.

Installation

Mount AKD-P01207-NBCC-1000 on standard DIN rail inside control cabinet.Connect three-phase AC power cable,DC bus,motor power cable and encoder feedback cable,wire EtherCAT bus cable for network communication.Tighten terminals,separate power and signal wiring,complete shielding grounding before power-on test.

Interface

‑3 phase AC power input terminal

‑3 phase motor power output terminal

‑Encoder / resolver feedback connector

‑EtherCAT bus port

‑Digital input and output terminal

‑Shield grounding terminal

Feature

AKD-P01207-NBCC-1000 Kollmorgen servo drive.Typical faults:power module damage,electrolytic capacitor aging,feedback circuit failure,EtherCAT communication chip fault,terminal oxidation.Test power supply,DC bus and signal communication before replacement.

Diagnostic

Drive faults will trigger overcurrent,overvoltage,overtemperature or feedback loss alarm;motor jitter,position tracking error,EtherCAT communication interruption,axis no response.

Built‑in function:Receive motion command,realize high precision torque,speed and position closed-loop control,as Kollmorgen AKD series high power servo drive spare replacement.

Product Brief

AKD-P01207-NBCC-1000 is Kollmorgen AKD EtherCAT servo drive,3 phase 480V AC,12A continuous current,DIN rail installation,compatible with AKM series servo motors for medium-duty automation equipment maintenance.Confirm bus type and motor feedback before ordering.ESD protection required during handling and installation.
