Giddings & Lewis M.1302.8130 MMC Servo Amplifier Module

Technical Specifications

Model： M.1302.8130

Brand： Giddings & Lewis

Product Type: Cabinet mount single-axis digital MMC servo amplifier for PiC900 CNC system

Module Feature:

Function: Single-axis MMC servo amplifier for G&L PiC900 CNC platform. Receives SERCOS fiber ring motion commands from MMC motion control boards, drives Giddings & Lewis HSM series brushless servo motors, implements closed-loop speed, torque and position control for heavy horizontal boring mills and large machining centers.

Command interface: SERCOS optical fiber ring bus

Feedback: Differential incremental A/B/Z encoder input for closed-loop position feedback

Onboard function: High-speed DSP control, integrated dynamic brake chopper for regenerative energy absorption

LED indicators: POWER, READY, AXIS ALARM, FAULT diagnostic lights

Hardware self-diagnosis: DC bus overvoltage / undervoltage detection, overcurrent protection, overtemperature monitoring, encoder signal loss alarm, motor short-circuit detection

Programming software: PiCPro / MMCPro for motor parameter identification, servo gain tuning and fault history reading

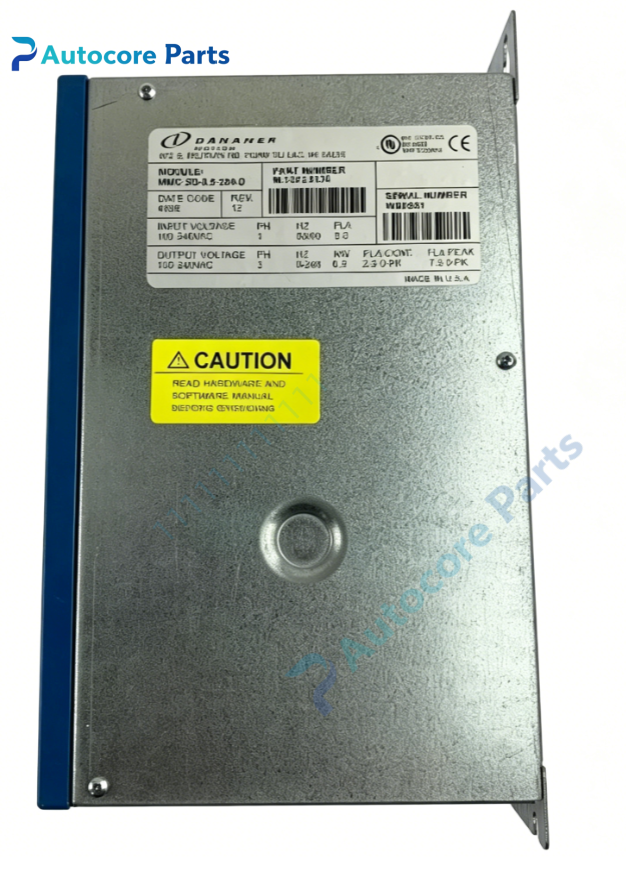

Electrical Parameters

AC Input: 230V three-phase AC

Auxiliary control power: 24VDC

Continuous output current: 10A

Peak output current: 30A

Mechanical & Structure:

Mounting: Vertical installation on cabinet backplate

Weight: 3.0kg

Protection class: IP20

Environmental:

Operating temperature: 0℃ ~ +50℃

Ambient humidity: 5~85% non-condensing

Certification: CE

Status: Manufacturer discontinued legacy PiC900 MMC single axis servo amplifier

System compatibility

Compatibility description: M.1302.8130 belongs to Giddings & Lewis PiC900 MMC SmartDrive servo family. Compatible with PiC900 CNC controller, M.1302 series MMC motion boards and G&L HSM brushless servo motors. Widely installed on heavy G&L horizontal boring mills.

Function

Function description: M.1302.8130 is single-axis digital MMC servo amplifier manufactured by Giddings & Lewis. It communicates with MMC motion controller through SERCOS optical fiber ring to receive synchronized motion instructions. It converts DC bus power to three-phase AC output to drive brushless servo motors. Encoder feedback signal is collected in real time to realize high precision closed-loop control. Built-in brake chopper dissipates regenerative energy generated during axis deceleration. It is legacy heavy-duty single-axis servo spare for G&L CNC boring mills.

Installation

Installation steps: Follow lockout/tagout safety procedure before installation. Disconnect main three-phase AC power and 24VDC control power. Mount M.1302.8130 vertically inside electrical cabinet. Wire three-phase AC input, shielded motor power cable, differential encoder cable and SERCOS fiber ring. Configure motor parameters and servo gain by PiCPro or MMCPro. Run drive self-test, verify READY indicator, test axis jog, homing and positioning performance.

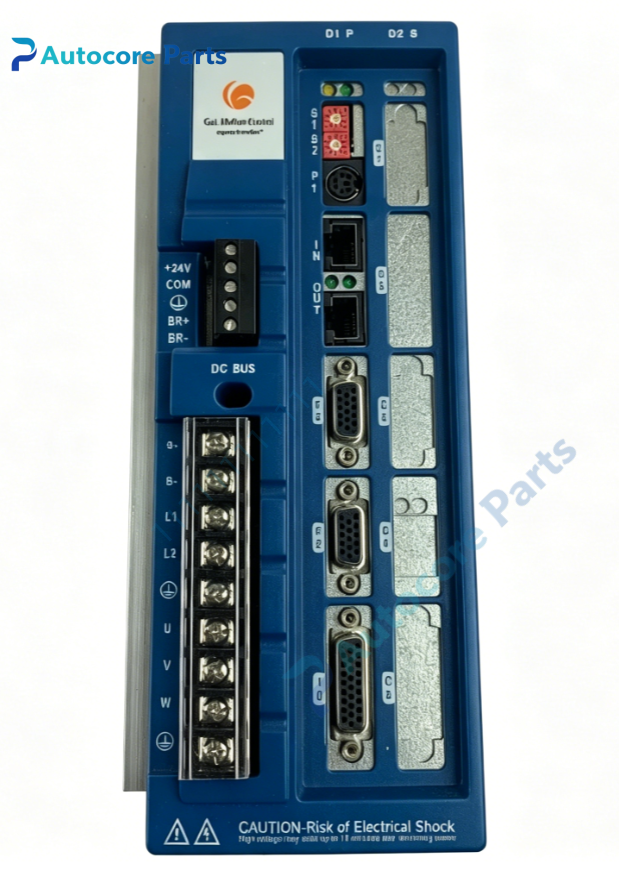

Interface

Interface list: 3-phase AC terminal block, motor power connector, encoder D-sub port, SERCOS fiber TX/RX ports,on-board POWER / READY / AXIS ALARM / FAULT LED indicators for Giddings & Lewis M.1302.8130.

Diagnostic

Troubleshooting: AXIS ALARM: Encoder cable damage, mechanical overload or position tracking error exceeding threshold. FAULT LED lit: DC bus voltage anomaly, overcurrent, overtemperature or internal circuit damage. Axis chatter: Improper servo gain value, insufficient brake resistance or poor cable shielding.

Product Brief

Brief description: M.1302.8130 is Giddings & Lewis legacy PiC900 single axis MMC servo amplifier,with SERCOS fiber ring digital interface for brushless servo motor closed-loop motion control on heavy CNC boring mills,discontinued CNC servo drive spare.
