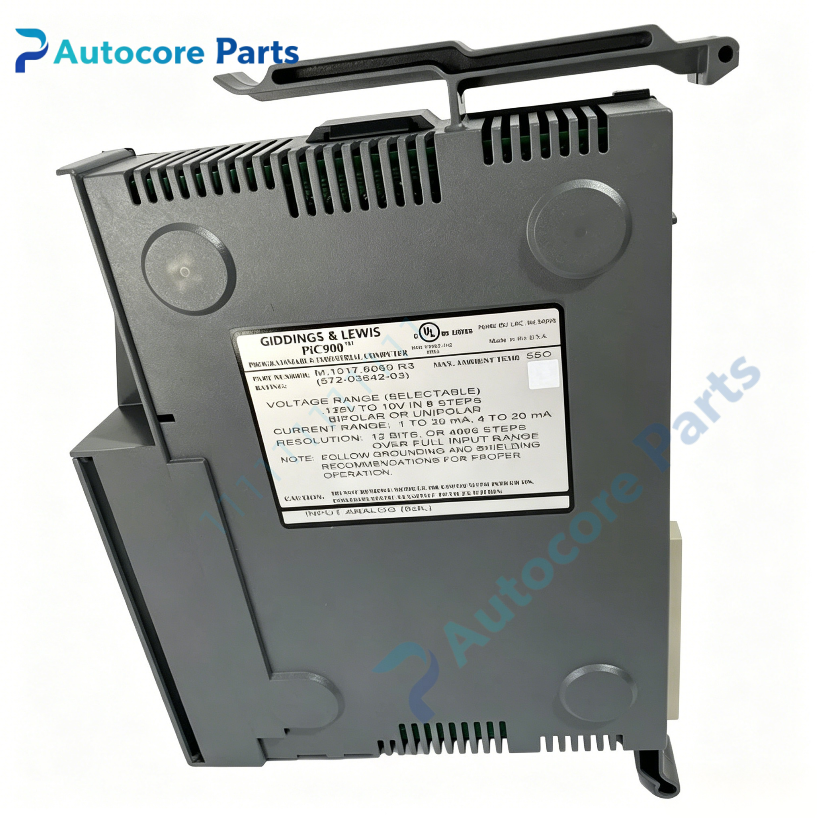

Giddings & Lewis M.1017.6069 A/D Analog Input Module

Technical Specifications

Model： M.1017.6069

Brand： Giddings & Lewis

Product Type: Rack mount A/D analog input PCB assembly for PiC900 CNC system

Module Feature:

Function: A/D analog input module for G&L PiC900 CNC platform. Collects analog signals from machine transducers, pressure sensors and temperature transmitters, converts analog signals to digital data and transmits data to PiC900 main processor for heavy horizontal boring mills and large machining centers.

Signal range: ±10V analog input

Bus interface: PiC900 parallel backplane bus for high-speed data exchange

Onboard components: Multi-channel high precision A/D converters, signal filter circuits, overvoltage protection

LED indicators: POWER, ACT, FAULT diagnostic lights

Hardware self-diagnosis: A/D conversion integrity test, input overrange alarm, backplane communication check

Programming software: PiCPro for channel scaling setup and module diagnostic testing

Electrical Parameters

Backplane supply: +5VDC Analog reference: ±15VDC

Power consumption: Max 8.7W

Mechanical & Structure:

Mounting: PiC900 rack slot mount with gold finger edge connector

Weight: 1.05kg

Protection class: IP20

Environmental:

Operating temperature: 0℃ ~ +55℃

Ambient humidity: 5~85% non-condensing

Certification: CE

Status: Manufacturer discontinued legacy PiC900 A/D analog input module

System compatibility

Compatibility description: M.1017.6069 belongs to Giddings & Lewis PiC900 analog I/O family. Compatible with PiC900 CPU, motion control boards and other rack I/O modules. Widely installed on heavy G&L horizontal boring mills.

Function

Function description: M.1017.6069 is A/D analog input board manufactured by Giddings & Lewis. It samples ±10V analog signals from machine field sensors and converts analog values to digital data for PiC900 CNC controller. The system uses these real-time data for hydraulic pressure monitoring, spindle temperature detection and machine condition supervision. Signal filtering reduces industrial noise interference. It is legacy analog acquisition spare for heavy G&L CNC boring mills.

Installation

Installation steps: Follow lockout/tagout safety procedure before installation. Cut off rack +5V and ±15VDC analog power. Insert M.1017.6069 board into PiC900 rack slot and secure gold finger connector. Connect shielded sensor cables to analog terminal block. Configure channel scaling parameters in PiCPro. Power on rack, verify ACT LED and test analog reading accuracy.

Interface

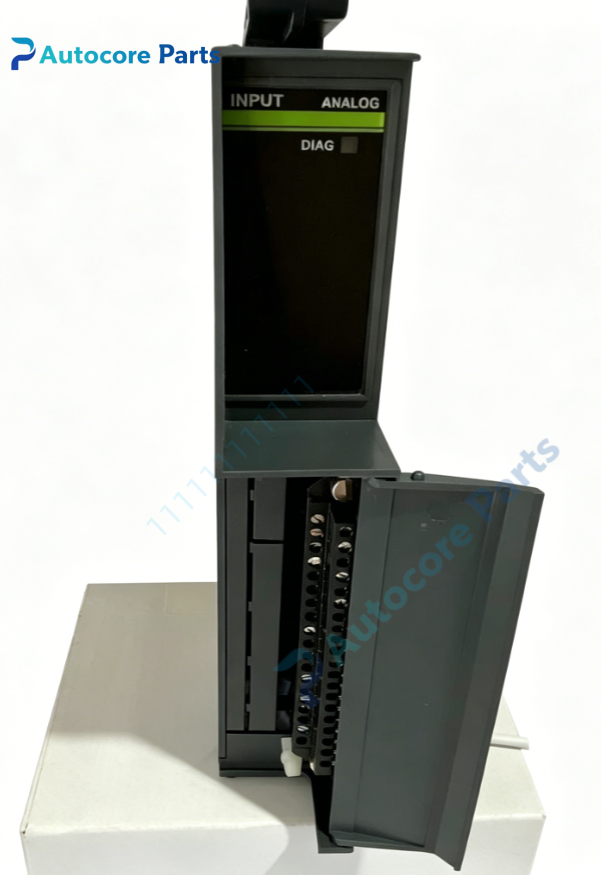

Interface list: PiC900 backplane gold finger connector, multi-channel analog screw terminal block,on-board POWER / ACT / FAULT LED indicators for Giddings & Lewis M.1017.6069.

Diagnostic

Troubleshooting: No analog reading: Check ±15V reference supply, sensor wiring or damaged A/D channel. FAULT LED lit: Analog input overrange, backplane communication error or onboard circuit failure. Unstable signal: Ground loop interference, poor cable shielding or faulty field transducer.

Product Brief

Brief description: M.1017.6069 is Giddings & Lewis legacy PiC900 A/D analog input module,for converting ±10V analog sensor signals to digital data for machine status monitoring on heavy CNC boring mills,discontinued CNC analog PCB spare.
