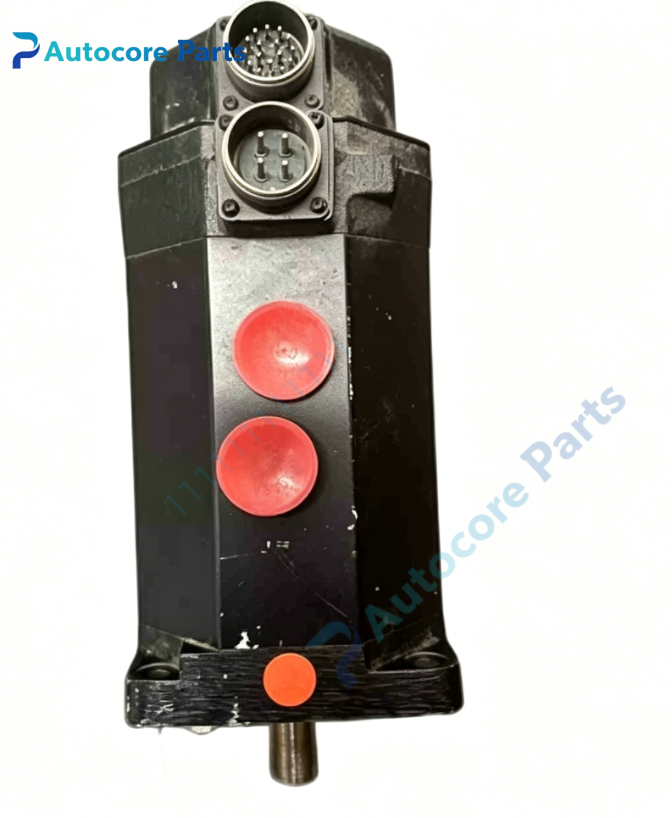

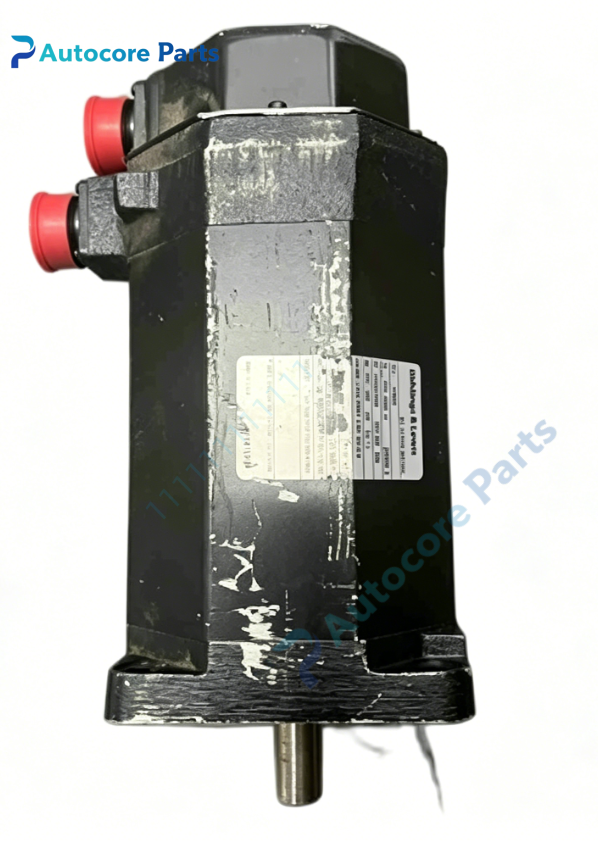

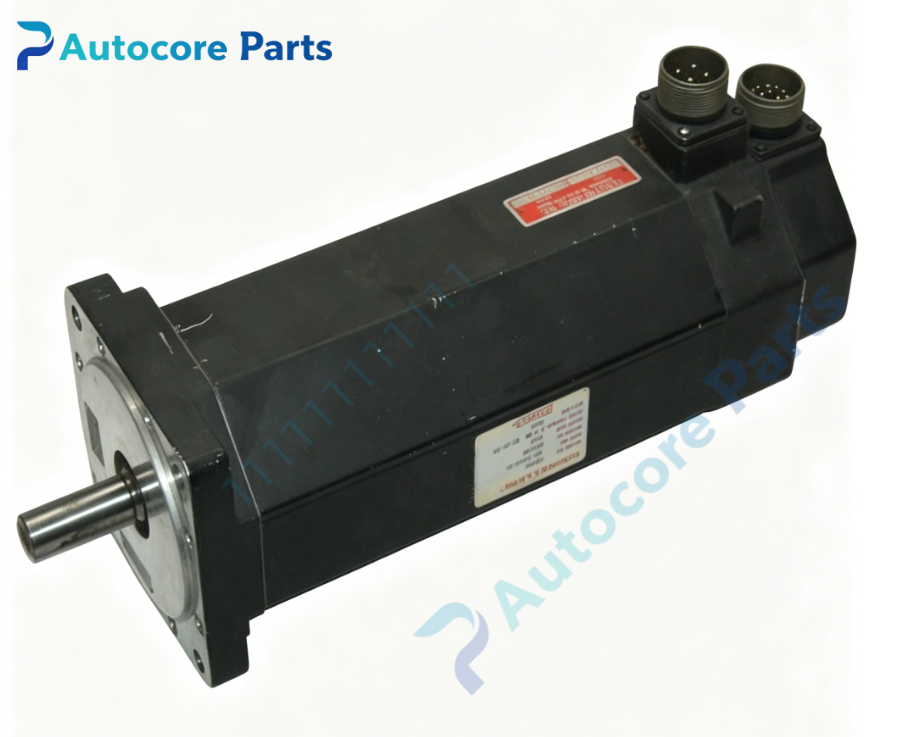

Giddings & Lewis FSM460 E5000 Servo Motor

Technical SpecificationsModel：FSM460 E5000 Brand：Giddings & Lewis Product Type: FSM series brushless AC servo motor for CNC machine tool axis drive

Module Feature:Function: High performance brushless AC servo motor for G&L CNC boring mills and machining centers, provides closed-loop speed and position control for linear and rotary axes. Max speed:5000 RPM Feedback:High resolution incremental encoder integrated Structure:Robust cast housing, heavy duty bearing assembly Option:Integrated spring-applied holding brake Winding design:Optimized for heavy intermittent cutting load LED indicators:Drive side motor ready, overload and fault status lights Hardware self-diagnosis:Motor temperature monitoring, encoder signal check, overload protection, brake feedback

Electrical ParametersRated supply:230V 3-phase AC Brake supply:24VDC (brake version) Power consumption:Depends on dynamic cutting load Power consumption:Max 7.2W at no load

Mechanical & Structure:Mounting:Flange mount Weight:9.8kg Protection class:IP54

Environmental:Operating temperature:0℃ ~ +40℃ Ambient humidity:5~85% non-condensing Certification:CE Status:Manufacturer discontinued legacy servo motor

System compatibilityFSM460 E5000 belongs to Giddings & Lewis FSM servo family. Compatible with PiC900 CNC control system and matching Centurion servo drives. Widely fitted on G&L 70A horizontal boring mills, PMC CNC boring machines and heavy duty machining centers for X/Y/Z axis motion.

FunctionFSM460 E5000 is brushless AC servo motor manufactured by Giddings & Lewis. It works with Centurion servo drive to deliver precise closed-loop position and velocity control for machine axes. Built-in high resolution encoder feeds real-time position signal back to PiC900 CNC controller. Optional holding brake locks axis position on power loss to prevent workpiece offset during heavy machining. It is widely used for heavy machine tool axis drive.

InstallationFollow lockout/tagout safety procedure before installation. Cut off servo drive power. Mount motor to ball screw or gearbox coupling and align shaft concentricity. Connect shielded three-phase power cable and encoder feedback cable. Wire 24VDC brake circuit if equipped. Configure motor parameters inside PiCPro software and perform axis homing test. Run no-load test and verify positioning accuracy.

Interface3-phase power connector,encoder feedback connector,brake control connector,on-board drive side ready and fault LED indicators for Giddings & Lewis FSM460 E5000.

DiagnosticAxis cannot move:Check servo enable signal, three phase power supply or brake release circuit fault. Motor overload alarm:Mechanical binding, excessive cutting load or bearing wear. Position tracking error:Encoder cable damage, loose coupling or encoder failure.

Product BriefFSM460 E5000 is Giddings & Lewis legacy FSM series brushless AC servo motor,with max 5000RPM speed for heavy CNC boring mill axis motion control,discontinued machine tool servo spare.
