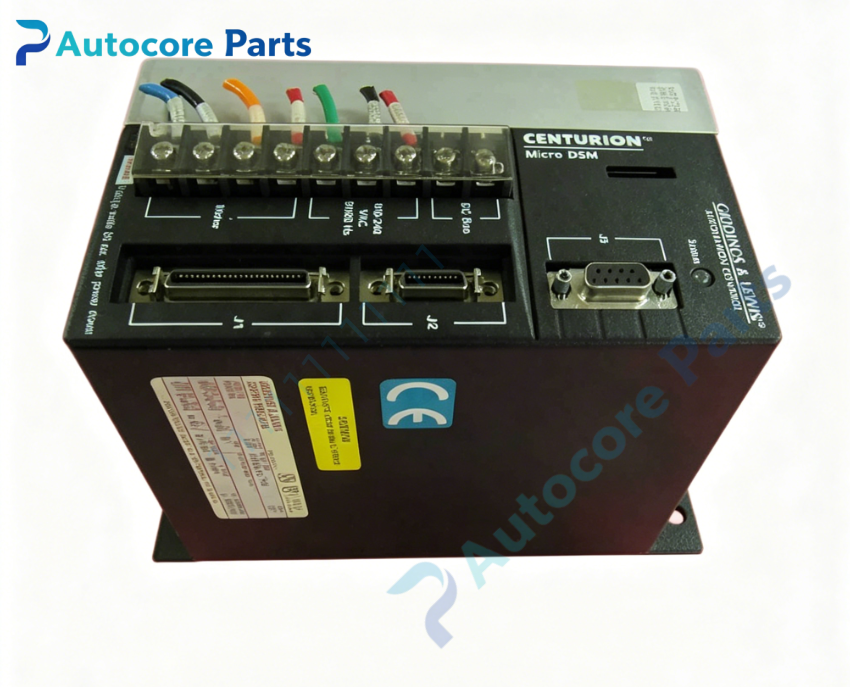

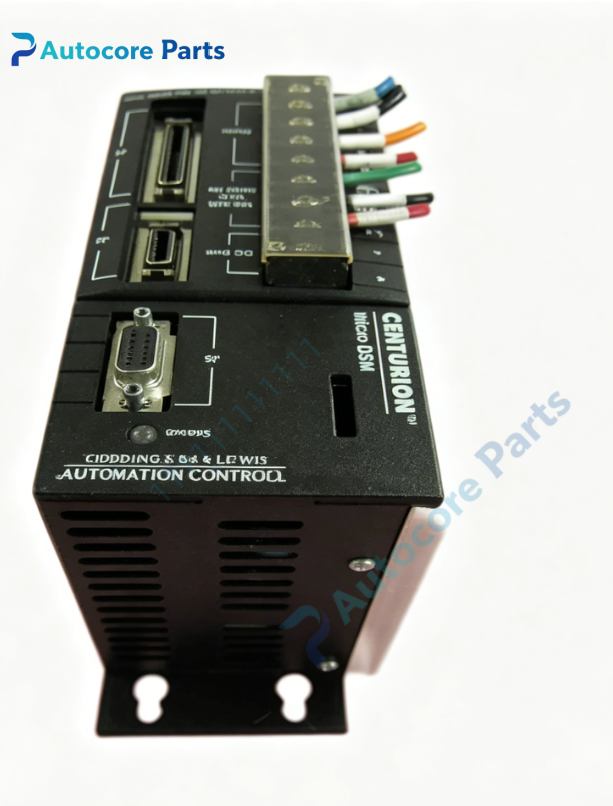

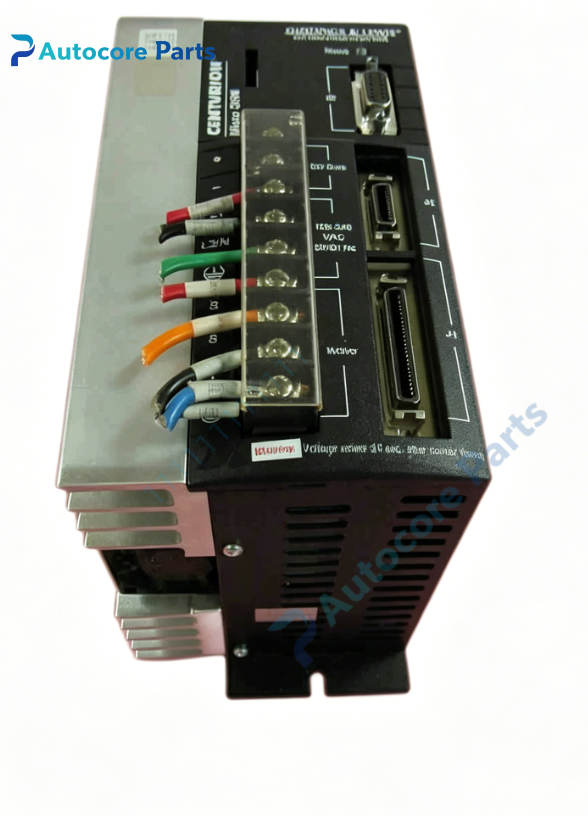

Giddings & Lewis DSM030 Centurion Micro DSM Servo Drive

Technical SpecificationsModel：DSM030 (Alternate PN:401-56453-00, M.1016.1630) Brand：Giddings & Lewis Product Type: Cabinet mount Centurion Micro DSM single axis AC servo drive

Module Feature:Function: Centurion Micro DSM single-axis servo drive for G&L PiC900 CNC platform. Receives motion commands from MMC motion control boards, outputs regulated current to drive G&L brushless servo motors for heavy horizontal boring mills and large machining centers. Continuous current:10A, peak current:30A Continuous output power:2.0kW Input voltage: 230V 1-phase / 3-phase AC Command interface: SERCOS fiber digital bus and ±10V analog velocity command Feedback: Differential incremental encoder input for closed-loop position & speed control Built-in DSP for current, velocity and position loop calculation Integrated shunt regulator interface for dynamic braking LED indicators: POWER, READY, AXIS FAULT, FAULT diagnostic status lights Hardware self-diagnosis: Overcurrent, DC bus overvoltage/undervoltage, overtemperature, motor short circuit, encoder loss detection Programming software: PiCPro for motor parameter setup, servo gain tuning and fault log reading

Electrical ParametersAC Input: 230V AC Auxiliary control supply:24VDC Power consumption:Depends on motor load External brake resistor support: Max 2.2kW peak shunt power

Mechanical & Structure:Mounting:Cabinet panel mount Weight:2.0kg Protection class:IP20

Environmental:Operating temperature:0℃ ~ +50℃ Ambient humidity:5~85% non-condensing Certification:CE Status:Manufacturer discontinued legacy Centurion Micro DSM servo drive

System compatibilityDSM030 belongs to Giddings & Lewis Centurion servo family. Compatible with PiC900 CNC controller, MMC motion control boards and G&L XSM/FSM/NSM series servo motors. Widely fitted on G&L heavy horizontal boring mills.

FunctionDSM030 is Centurion Micro DSM servo drive manufactured by Giddings & Lewis. It is single-axis compact servo amplifier for PiC900 CNC system. It accepts motion commands via SERCOS optical fiber ring or ±10V analog signal, regulates output current to drive brushless servo motor, and reads encoder feedback to build closed-loop servo control. It is designed for medium power feed axes on heavy CNC boring mills.

InstallationFollow lockout/tagout safety procedure before installation. Disconnect main AC power and 24VDC control power. Mount DSM030 on cabinet backplate. Connect AC power cable, shielded motor power cable, encoder feedback cable and SERCOS/analog command cable. Configure motor parameters and servo gain via PiCPro, run drive self-test and perform axis homing and positioning test.

InterfaceAC power terminal block, motor power terminal, encoder D-sub connector, SERCOS fiber port, analog command terminal block,on-board POWER / READY / AXIS FAULT / FAULT LED indicators for Giddings & Lewis DSM030.

DiagnosticNo axis movement:Check 230VAC main power,24V control supply or servo enable signal missing. AXIS FAULT:Encoder signal loss, motor overload, short circuit or servo position error exceed limit. FAULT LED lit:Overtemperature, DC bus voltage abnormality or internal hardware fault.

Product BriefDSM030 is Giddings & Lewis legacy Centurion Micro DSM single axis servo drive,with SERCOS fiber and analog ±10V dual command interface for heavy CNC boring mill 2.0kW servo motor control,discontinued CNC servo amplifier spare.
