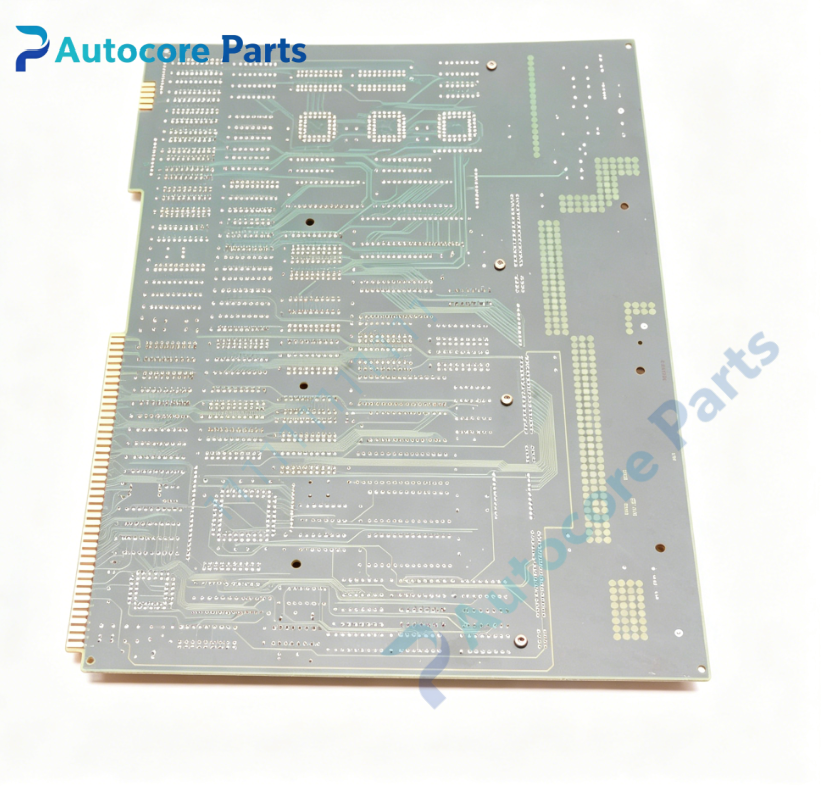

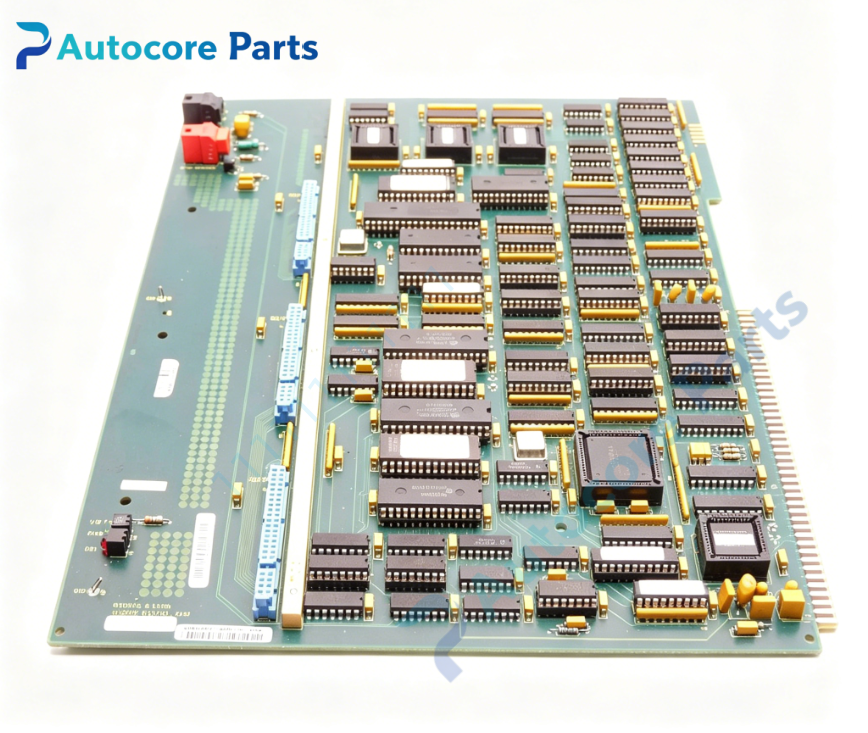

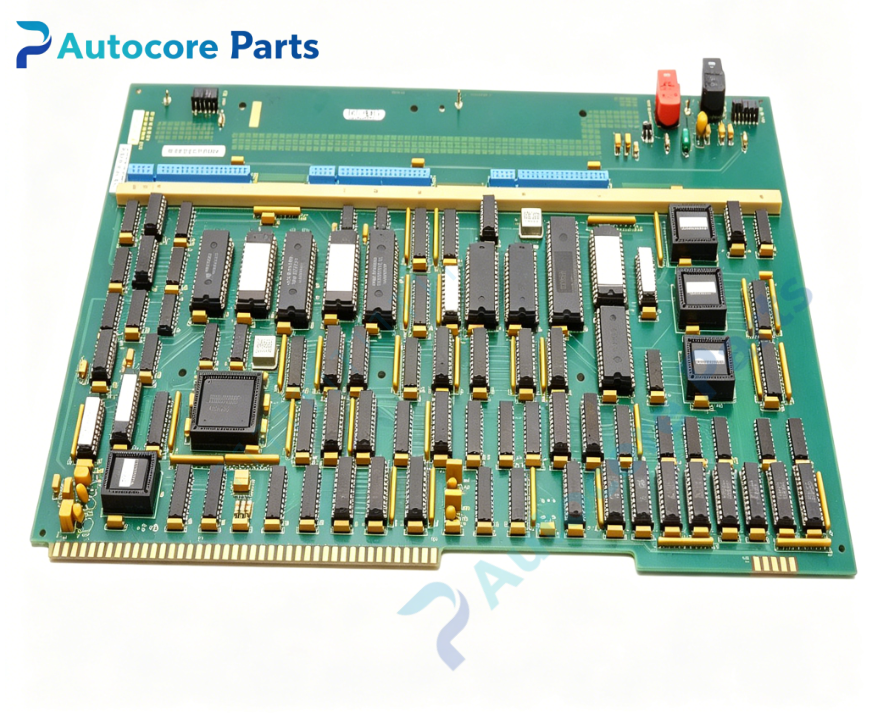

Giddings & Lewis 503-19771-02 I/O Communications Board

Technical SpecificationsModel：503-19771-02 Brand：Giddings & Lewis Product Type: Rack mount I/O communications PCB assembly for legacy G&L CNC control system

Module Feature:Function: CNC I/O communication interface board for G&L legacy CNC platform. Acts as signal bridge between CNC main processor and machine digital I/O points. Handles discrete input/output signal collection, logic conversion, safety interlock signal transfer for heavy horizontal boring mills and large machining centers. Bus interface: Parallel backplane bus to exchange I/O data with main CPU Signal type: 24VDC discrete digital input and relay/transistor output signal conditioning Onboard logic chips, buffer circuits and surge protection components LED indicators: POWER, ACT, FAULT diagnostic lights Hardware self-diagnosis: Backplane communication test, I/O channel integrity detection, short-circuit fault alarm Programming software: G&L proprietary CNC software for I/O address configuration and channel diagnostic testing

Electrical ParametersSupply: +5VDC backplane supply and 24VDC field I/O power Power consumption:Max 9.2W

Mechanical & Structure:Mounting: Rack slot mount with gold finger edge connector Weight:0.85kg Protection class:IP20

Environmental:Operating temperature:0℃ ~ +55℃ Ambient humidity:5~85% non-condensing Certification:CE Status:Manufacturer discontinued legacy CNC I/O communications board

System compatibility503-19771-02 belongs to Giddings & Lewis legacy CNC I/O family. Compatible with matching system backplane and executive CPU processor boards. Widely fitted on vintage G&L heavy horizontal boring mills.

Function503-19771-02 is I/O communications board manufactured by Giddings & Lewis. It is responsible for transferring digital machine signals between CNC main controller and field machine peripherals. It reads limit switches, proximity sensors, emergency stop and interlock inputs, and outputs control signals to relays, contactors and machine actuators. It converts backplane bus signals to 24VDC field I/O signals, implementing machine safety and logic control. It is legacy I/O communication spare for old heavy G&L CNC machine tools.

InstallationFollow lockout/tagout safety procedure before installation. Cut off rack +5V backplane power and 24VDC field power. Insert 503-19771-02 board into rack slot and secure gold finger connector. Wire field 24VDC I/O signals with shielded cables. Configure I/O addresses in CNC software, run self-test and verify all input and output channels.

InterfaceBackplane gold finger connector,24VDC field I/O terminal block,on-board POWER / ACT / FAULT LED indicators for Giddings & Lewis 503-19771-02.

DiagnosticI/O channel no response:Check 24VDC field supply, wiring or channel damage. FAULT LED lit:Backplane communication failure, short circuit on field I/O or onboard buffer fault. Interlock signal unstable:Ground loop interference or poor terminal contact.

Product Brief503-19771-02 is Giddings & Lewis legacy I/O communications board,for CNC system digital signal exchange with machine field sensors and actuators on heavy CNC boring mills,discontinued CNC I/O PCB spare.
