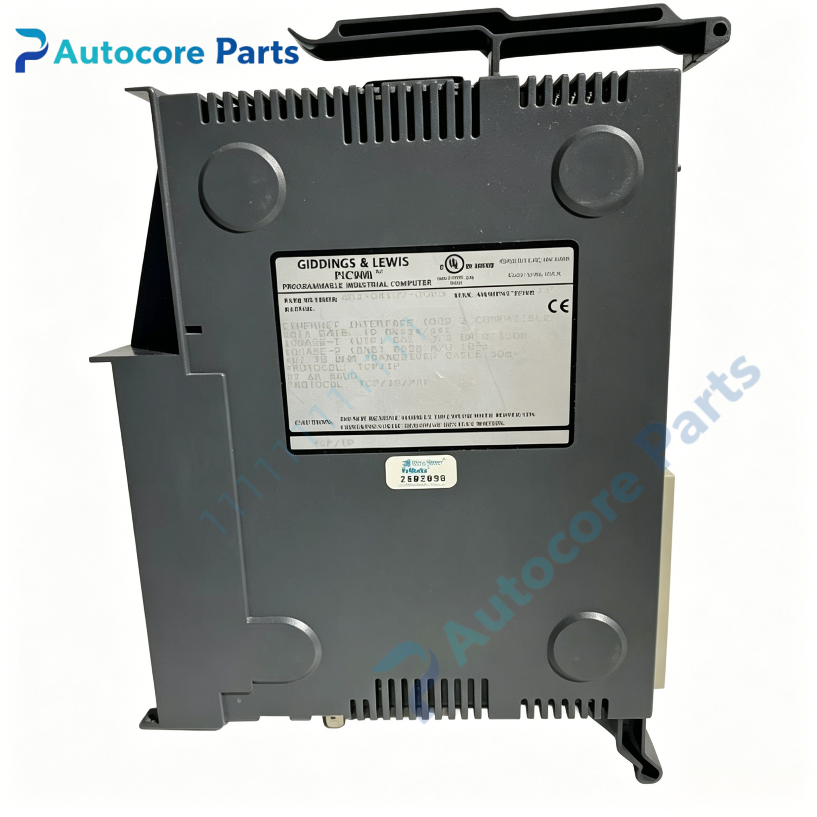

Giddings & Lewis 502-04137-00 Ethernet Interface Module

Technical Specifications

Model： 502-04137-00

Brand： Giddings & Lewis

Product Type: Rack mount Ethernet interface PCB assembly for legacy NumeriPath CNC system

Module Feature:

Function: Ethernet communication interface board for G&L NumeriPath CNC platform. It provides 10Mbps 10BASE-T network connection, supports TCP/IP protocol to realize data upload, program transfer and remote status monitoring between CNC controller and upper computer for heavy horizontal boring mills and large machining centers.

Network standard: IEEE 802.3, 10BASE-T, 10Mbit/s

Bus interface: Parallel backplane bus for data exchange with CNC executive CPU

Onboard components: Ethernet communication controller, data buffer memory chips

LED indicators: POWER, LINK, TX, RX, FAULT diagnostic lights

Hardware self-diagnosis: Network link detection, data transmission error check, backplane communication integrity test

Programming software: Giddings & Lewis proprietary CNC software for IP address configuration and network diagnostic test

Electrical Parameters

Backplane supply: +5VDC

Power consumption: Max 7.5W

Mechanical & Structure:

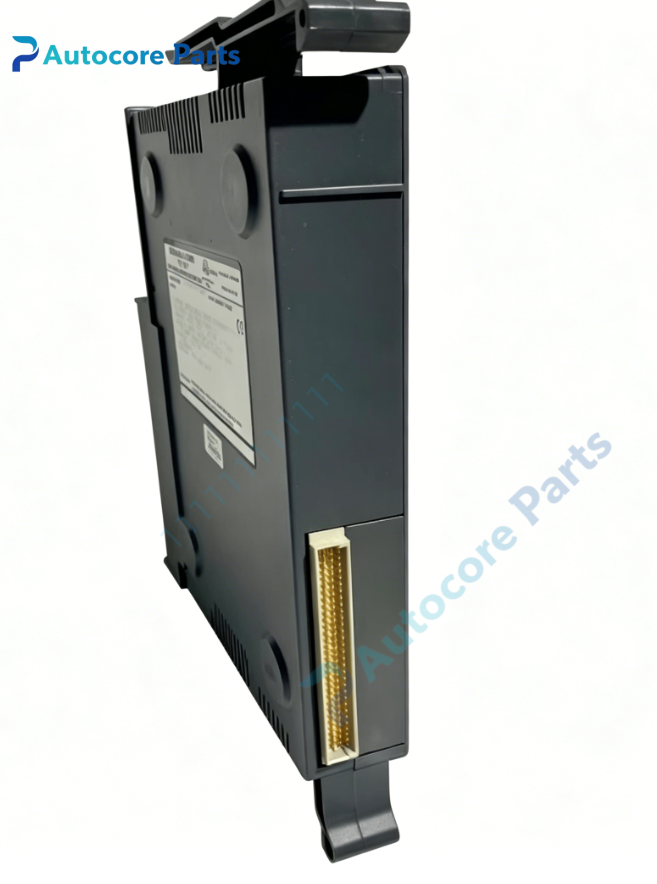

Mounting: Rack slot mount with gold finger edge connector

Weight: 0.75kg

Protection class: IP20

Environmental:

Operating temperature: 0℃ ~ +55℃

Ambient humidity: 5~85% non-condensing

Certification: CE

Status: Manufacturer discontinued legacy CNC Ethernet communication board

System compatibility

Compatibility description: 502-04137-00 belongs to Giddings & Lewis NumeriPath network communication family. Compatible with matching rack backplane, executive CPU and HMI interface boards. Widely fitted on vintage heavy G&L horizontal boring mills.

Function

Function description: 502-04137-00 is Ethernet interface board manufactured by Giddings & Lewis. It serves as dedicated network gateway for legacy NumeriPath CNC. It establishes 10M TCP/IP network connection, realizes NC program upload/download, machine running status upload and remote diagnostic data transmission between CNC and industrial host computer. It greatly facilitates program management and equipment maintenance of heavy CNC boring mills. It is legacy network communication spare for old heavy G&L CNC machine tools.

Installation

Installation steps: Follow lockout/tagout safety procedure before installation. Cut off rack +5V backplane power. Insert 502-04137-00 board into rack slot and secure gold finger connector. Connect twisted-pair Ethernet cable to RJ45 port. Configure IP address and network parameters via CNC software. Power on rack, verify LINK / TX / RX LED status and test file transfer and network communication.

Interface

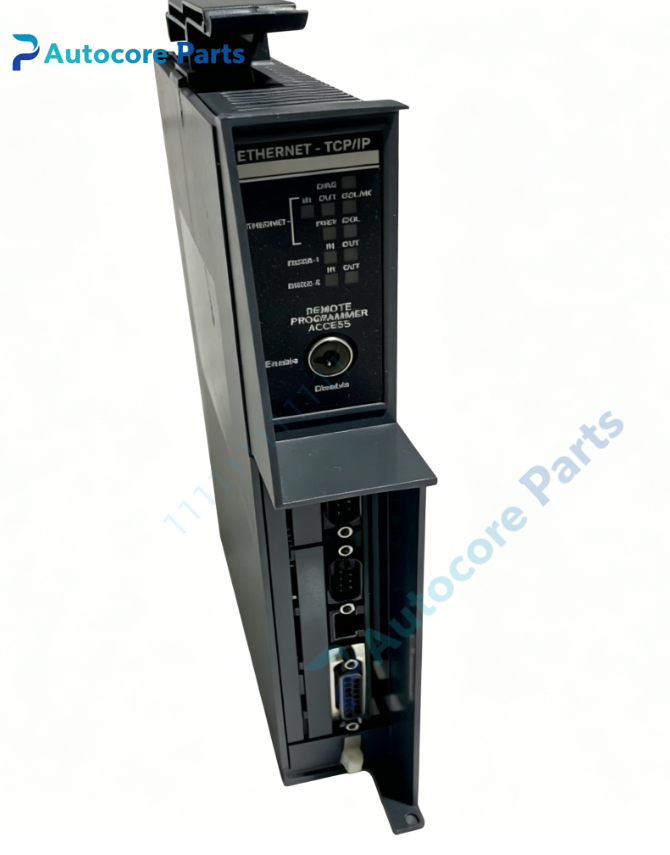

Interface list: Backplane gold finger connector, RJ45 10BASE-T Ethernet port,on-board POWER / LINK / TX / RX / FAULT LED indicators for Giddings & Lewis 502-04137-00.

Diagnostic

Troubleshooting: No network link:Check Ethernet cable, RJ45 connector or network switch port status. FAULT LED lit:Backplane communication failure or onboard network controller fault. Failed file transmission:IP address mismatch, network conflict or baud rate parameter error.

Product Brief

Brief description: 502-04137-00 is Giddings & Lewis legacy Ethernet interface board,for 10Mbps TCP/IP network communication and CNC program transfer on heavy CNC boring mills,discontinued CNC network PCB spare.
