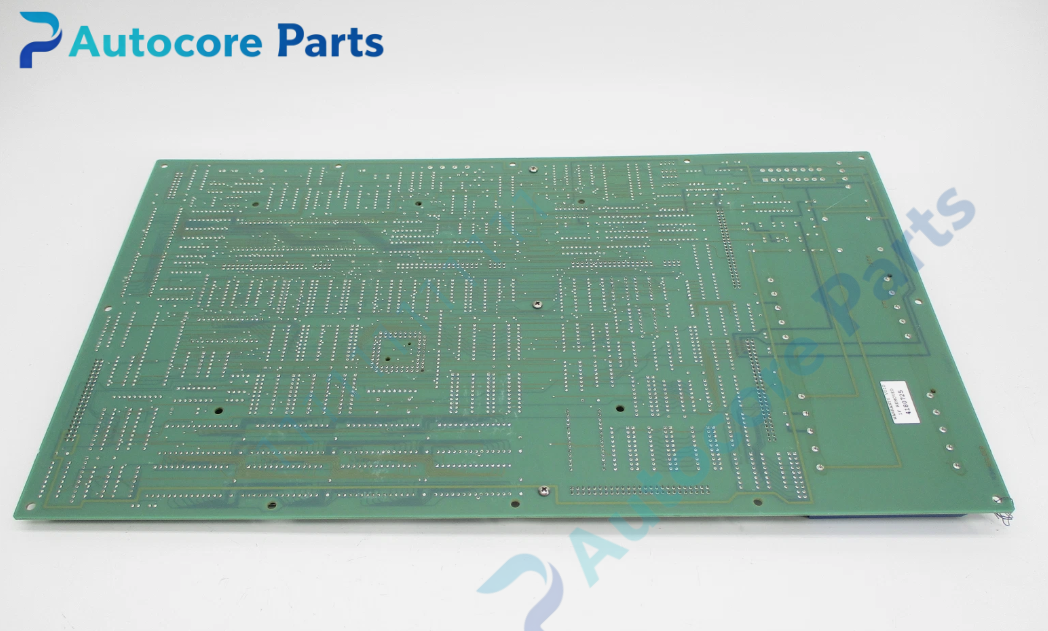

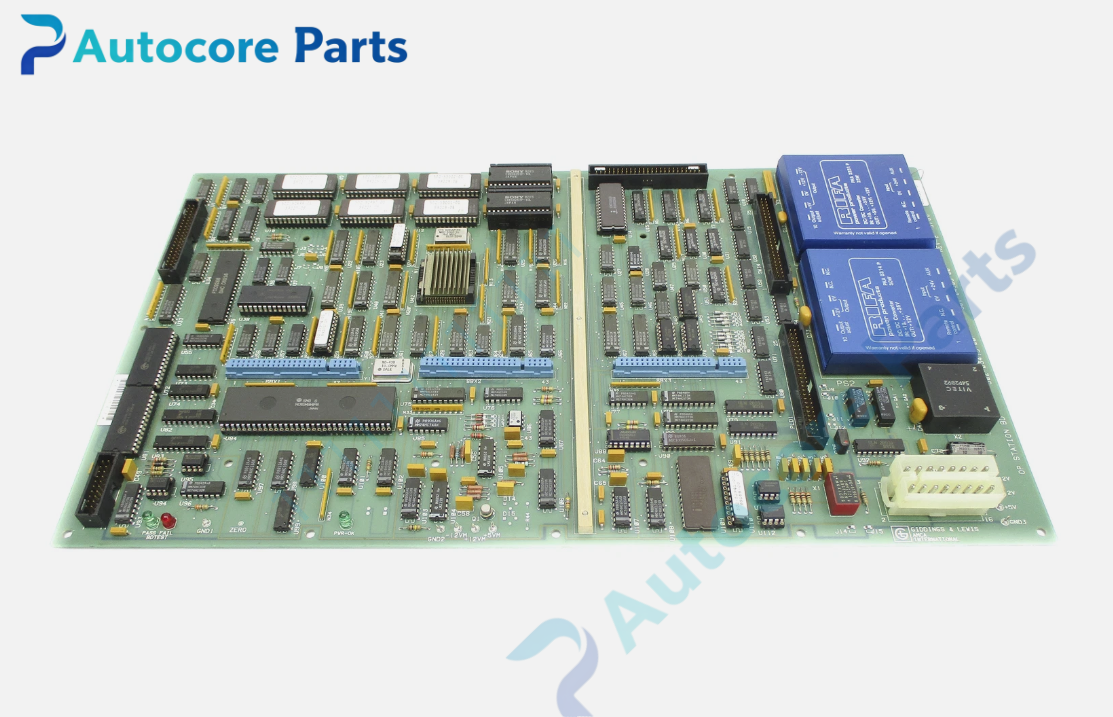

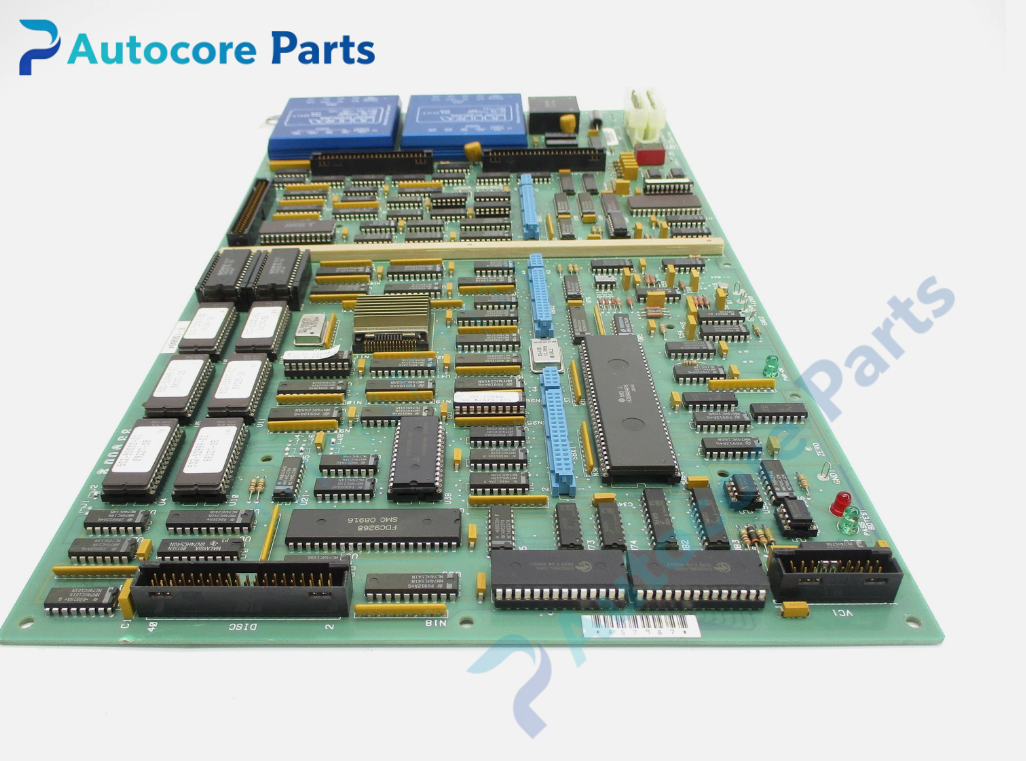

Giddings & Lewis 502-03419-00 Operator Station Board

Technical SpecificationsModel：502-03419-00, alternate M.1017.6227-00 Brand：Giddings & Lewis Product Type: Operator station main PCB assembly for NumeriPath 8000 / 8000B CNC platform

Module Feature:Function: CNC operator station control board for G&L NumeriPath 8000 series system. Handles keypad input, display driving, operator command processing and data communication with CNC main controller for heavy horizontal boring mills and large machining centers. Sub-board: Equipped with SBX sub board (502-52941-00) for extended processing capability Onboard components: DC/DC converter modules, EPROM firmware storage, PLD logic chips Task handling: Process manual jog commands, display axis position, alarm message rendering, operator panel data exchange LED indicators: POWER, RUN, ALARM diagnostic lights Hardware self-diagnosis: Board power rail check, firmware CRC test, front panel communication detection Programming software: G&L proprietary CNC software for firmware loading and board diagnosis

Electrical ParametersSupply: Multiple regulated DC rails generated by onboard DC/DC converters Power consumption:Max 18W

Mechanical & Structure:Mounting: Rack mounted large PCB assembly Weight:1.4kg Protection class:IP20

Environmental:Operating temperature:0℃ ~ +50℃ Ambient humidity:5~85% non-condensing Certification:CE Status:Manufacturer discontinued legacy CNC operator station board

System compatibility502-03419-00 belongs to Giddings & Lewis NumeriPath 8000 /8000B CNC family. Works with matching system backplane, CPU and servo interface modules. Widely used on vintage G&L heavy horizontal boring mills.

Function502-03419-00 is operator station board manufactured by Giddings & Lewis. It serves as the core processing board of the machine operator panel. It receives keypad/jog inputs from machinist, communicates with CNC main CPU, drives the front display to show real-time axis positions, G-code status and system alarms. It integrates DC/DC power converters and EPROM firmware storage to implement HMI logic. It is a legacy operator interface spare for old heavy G&L CNC machine tools.

InstallationFollow lockout/tagout safety procedure before installation. Disconnect system power. Install board into machine control rack, secure edge connectors. Check onboard DC/DC modules and EPROM chips before power-up. Load matching firmware, run board self-test and verify keypad, jog and display functions.

InterfaceBackplane gold finger connector,keypad/display interface port,on-board POWER / RUN / ALARM LED indicators for Giddings & Lewis 502-03419-00.

DiagnosticNo display output:Check onboard DC/DC converter failure or firmware EPROM fault. ALARM LED lit:Communication timeout with main CPU or PLD logic error. Keypad no input:Front panel wiring fault or sub-board SBX contact issue.

Product Brief502-03419-00 is Giddings & Lewis legacy operator station board for NumeriPath 8000 CNC system,for machine operator panel keypad processing and display control on heavy CNC boring mills,discontinued HMI PCB spare.
