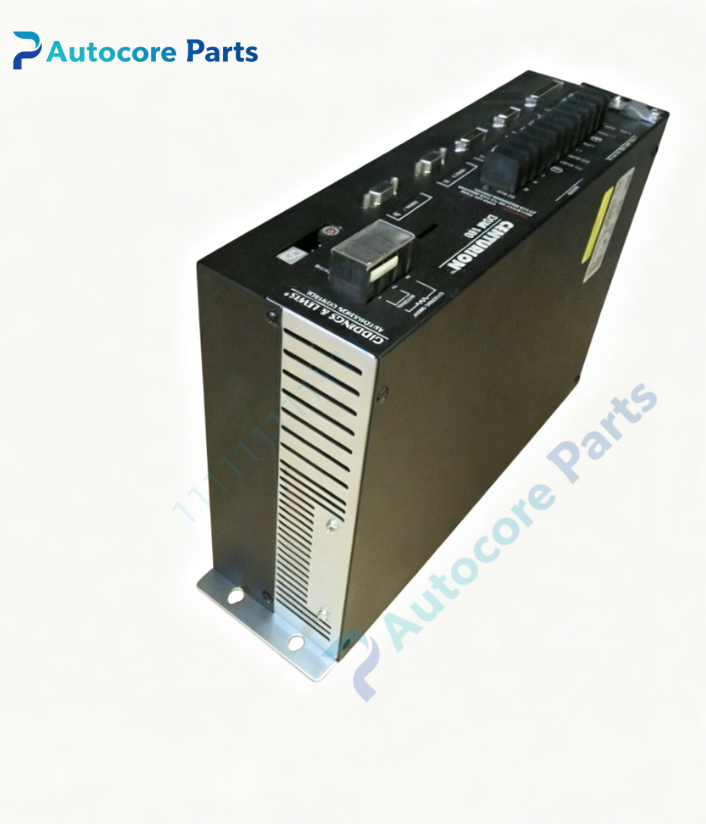

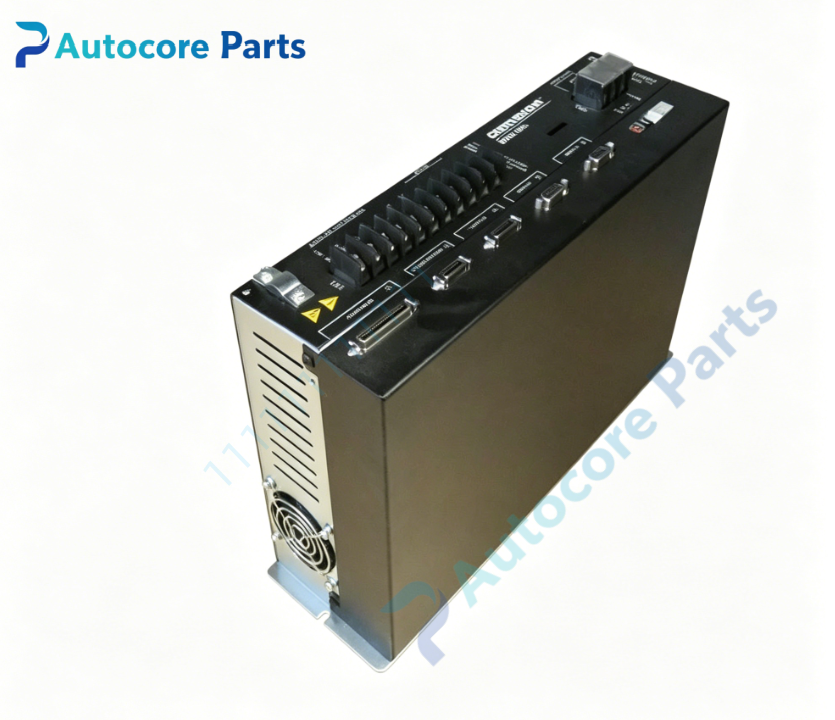

Giddings & Lewis 401-34402-50 Servo Drive

Technical SpecificationsModel：401-34402-50 Brand：Giddings & Lewis Product Type: Centurion series rack mount AC servo drive for CNC machine tool axis control

Module Feature:Function: Centurion 30A servo amplifier for G&L PiC900 CNC system, receives motion commands from motion control board and drives brushless servo motors for heavy horizontal boring mills and machining centers. Continuous current:30A Input voltage:230V 3-phase AC Command interface: SERCOS digital fiber bus + ±10V analog velocity command Feedback support: Accept differential incremental encoder position feedback Control algorithm: Onboard digital signal processor for current, speed and position loop calculation LED indicators: POWER, READY, AXIS ALARM, FAULT diagnostic lights Hardware self-diagnosis: Overcurrent, overvoltage, undervoltage, overtemperature, motor short circuit and encoder loss detection Programming software: PiCPro for motor parameter upload, servo gain tuning and fault log readout

Electrical ParametersAC Input:230V 3-phase AC Rated continuous output:30A Control power:24VDC auxiliary supply Power consumption:Dependent on motor load

Mechanical & Structure:Mounting:Cabinet rack mount Weight:4.7kg Protection class:IP20

Environmental:Operating temperature:0℃ ~ +50℃ Ambient humidity:5~85% non-condensing Certification:CE Status:Manufacturer discontinued legacy Centurion servo drive

System compatibility401-34402-50 belongs to Giddings & Lewis Centurion servo family. Compatible with PiC900 CNC control platform, MMC motion control boards and XSM/FSM/NSM series G&L servo motors. Widely fitted on G&L 70A horizontal boring mills and PMC CNC boring machines.

Function401-34402-50 is Centurion 30A servo amplifier manufactured by Giddings & Lewis. It receives trajectory commands via SERCOS fiber bus or ±10V analog signal, regulates output current to drive brushless servo motor, and reads encoder feedback to form closed-loop axis control. It integrates full protection functions for heavy intermittent cutting load conditions. It is critical servo power spare for legacy heavy G&L CNC machine tools.

InstallationFollow lockout/tagout safety procedure before installation. Disconnect 3-phase 230VAC main power and 24VDC control supply. Mount 401-34402-50 on cabinet rack. Connect main AC power, shielded motor power cable, encoder feedback cable and SERCOS/analog command cable. Configure motor parameters and servo gain in PiCPro. Power on, run drive self-test and perform axis homing and positioning test.

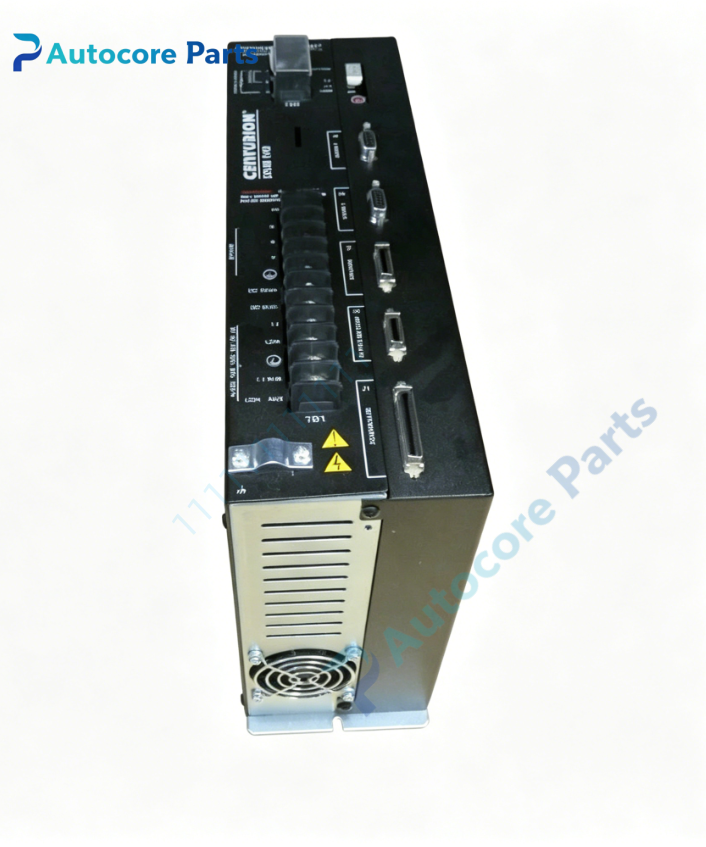

Interface3-phase AC input terminal, motor power terminal, encoder feedback connector, SERCOS fiber port, analog command terminal block,on-board POWER / READY / AXIS ALARM / FAULT LED indicators for Giddings & Lewis 401-34402-50.

DiagnosticNo axis movement:Check 230VAC main power,24V control power or servo enable signal. AXIS ALARM:Overcurrent, motor short circuit, encoder signal loss or mechanical overload. FAULT LED lit:Overtemperature, DC bus overvoltage/undervoltage or internal hardware failure.

Product Brief401-34402-50 is Giddings & Lewis legacy Centurion 30A servo drive,with SERCOS and analog command interface for heavy CNC boring mill servo motor driving,discontinued CNC servo amplifier spare.
