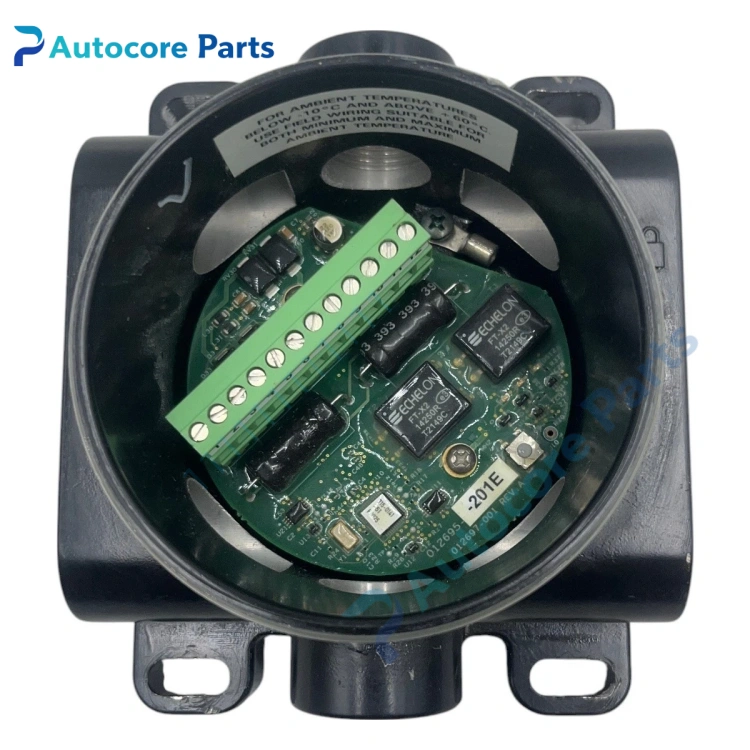

Det-Tronics EQ2400NE Network Extender

Feature & Principle

EQ2400NE is a LON loop network extender for Det-Tronics Eagle Quantum Premier fire and gas safety system. It expands communication loop capacity, adds up to 40 extra field nodes and extends wiring distance by 2000 meters per unit. It supports bidirectional communication, the loop can continue transmitting data from the opposite direction when a cable fault occurs, improving system reliability for hazardous area gas detection.

Specifications

Model: EQ2400NE Brand: Det-Tronics System: Eagle Quantum Premier Power supply: 18~30 VDC Power consumption: 3.0 W Bus type: LON / SLC communication loop Max expansion: +40 nodes, +2000m wiring Application: Industrial hazardous area fire and gas detection cabinet Certification: CE, UL

Components & Diagnostics

Communication processing circuit, status indicator LED, power supply circuit, terminal block. Common faults: loop communication interruption, module offline, LED abnormal indication, power supply failure.

Product Brief

EQ2400NE network extender, Det-Tronics Eagle Quantum Premier gas detection loop expansion spare widely used for petrochemical safety system overhaul and replacement.
