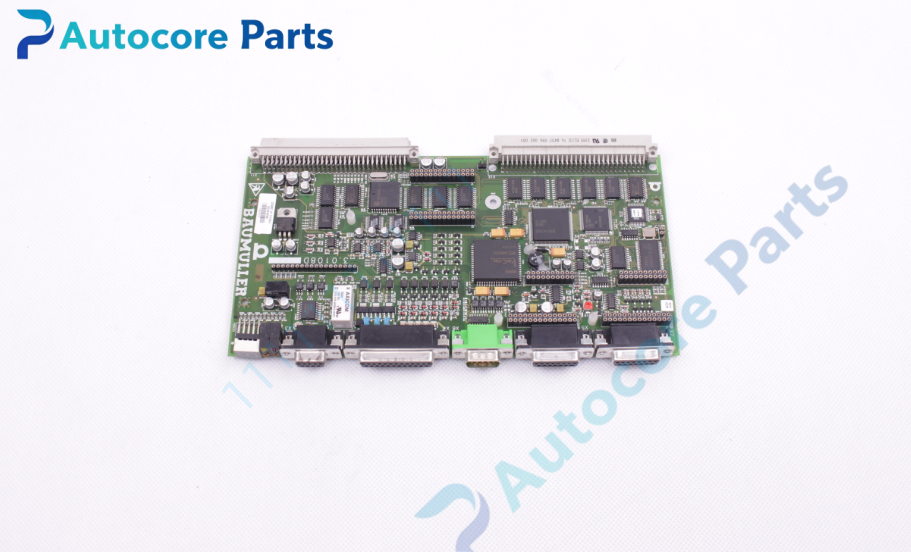

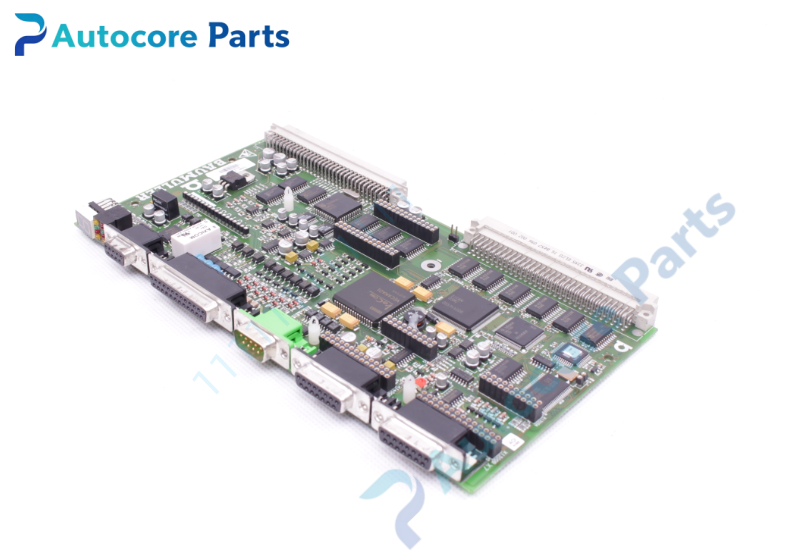

BAUMULLER 3.0108D Servo Drive Control Printed Circuit Board

Technical Specifications

Model: 3.0108D (alternate marking: 30108D) Brand: BAUMULLER (Baumüller, Germany) Product Type: Servo Drive Control Printed Circuit Board Mounting: Installed inside BAUMULLER BUM60 series servo drive housing Operating temperature: 0℃ ~ +60℃ Storage temperature: -20℃ ~ +70℃ Relative humidity: 5%~95%, non-condensing Protection: IP20 (when fully assembled inside drive enclosure) Power supply: 24V DC Weight: 0.40 kg

System compatibility

3.0108D is dedicated control board for BAUMULLER BUM60 servo drives. It matches corresponding power modules and feedback sampling boards, widely used in printing, metal forming, plastic extrusion and textile machinery for drive control part replacement.

Function

3.0108D is the core control PCB inside Baumüller BUM60 servo drive. It executes digital motion control logic, stores drive parameter sets, and receives position feedback signals from resolver or encoder. It generates control commands to power stage modules, monitors drive running status and triggers hardware & software protection signals under abnormal conditions. It is used to replace defective control boards during servo drive overhaul.

Installation

Cut off all high-voltage power before disassembly. Open servo drive casing and fully discharge DC bus capacitors. Remove the old control board, install 3.0108D and tighten mounting screws. Reconnect internal edge connectors and external signal terminals. Check wiring definition, download matching parameters, test motor operation before formal production.

Interface

Edge connectors, multi-channel pin headers, parameter memory port, status LED indicators for 3.0108D BAUMULLER control board.

Feature

Original Baumüller control circuit board, multi-layer FR4 substrate, conformal coating protection, vibration-resistant soldering, stable multi-channel signal processing, compact internal installation layout. This legacy spare part is used for repairing old BAUMULLER BUM60 servo drive systems.

Diagnostic

Drive boot failure after replacement: check edge connector contact and 24V power supply for 3.0108D. Motor motion abnormal: verify feedback signal wiring and parameter matching. Intermittent fault codes: inspect solder joints and cabinet grounding condition.

Product Brief

3.0108D is German BAUMULLER control PCB for BUM60 servo drives. It processes motion logic and position feedback signals for servo closed-loop control, classic spare part for legacy BAUMULLER industrial machine drive overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
