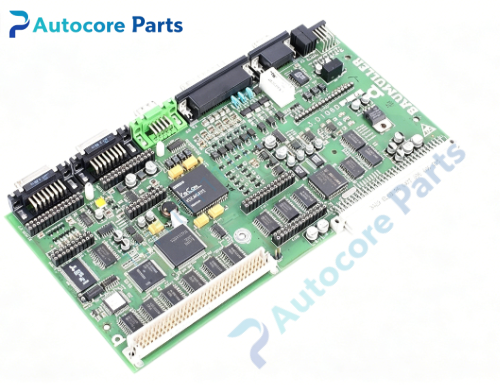

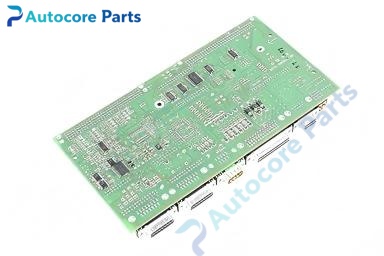

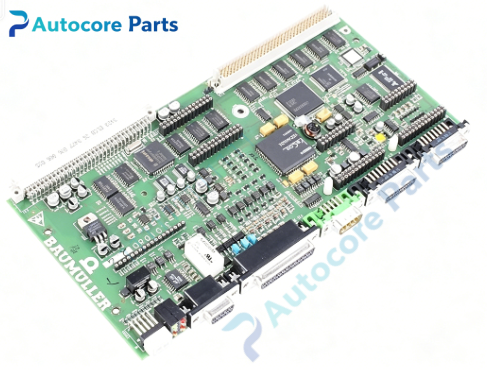

BAUMULLER 3.0108D Servo Drive Control Board

Technical Specifications

Model: 3.0108D Brand: BAUMULLER (Baumüller, Germany) Product Type: Servo Drive Control Printed Circuit Board Mounting: Installed inside BAUMULLER BUM60 series servo drive housing Operating temperature: 0℃ ~ +60℃ Storage temperature: -20℃ ~ +70℃ Relative humidity: 5%~95%, non-condensing Protection: IP20 (when fully assembled inside drive enclosure) Power supply: 24V DC Weight: 0.40 kg

System compatibility

3.0108D is dedicated control board for BAUMULLER BUM60 servo drives. It matches the corresponding power modules and feedback sampling boards, widely used in printing, metal forming, plastic extrusion and textile machinery for drive control part replacement.

Function

3.0108D is the core control PCB inside Baumüller BUM60 servo drive. It processes digital motion logic, stores drive parameter sets, and receives feedback signals from resolver or encoder. It generates control commands to power stage modules, monitors drive operating status and triggers hardware and software protection signals in fault conditions. It is used to replace failed control boards during servo drive overhaul.

Installation

Cut off all high-voltage power before disassembly. Open servo drive casing and fully discharge DC bus capacitors. Remove the old control board, install 3.0108D and secure mounting screws. Reconnect internal edge connectors and external signal terminals. Check wiring definition, download matching parameters, test motor operation before formal production.

Interface

Edge connectors, multi-channel pin headers, parameter memory port, status LED indicators for BAUMULLER 3.0108D control board.

Feature

Original Baumüller control circuit board, multi-layer FR4 substrate, conformal coating protection, vibration-resistant soldering, stable signal processing, compact internal installation layout. This legacy spare part is used for repairing old BAUMULLER BUM60 servo drive systems.

Diagnostic

Drive boot stuck after replacement: check edge connector contact and 24V power supply for 3.0108D. Abnormal motion response: verify feedback wiring and parameter configuration. Intermittent fault codes: inspect solder joints and cabinet grounding condition.

Product Brief

3.0108D is German BAUMULLER control PCB for BUM60 servo drives. It processes motion logic and implements multi-protection monitoring, classic spare part for legacy BAUMULLER industrial machine drive overhaul.
