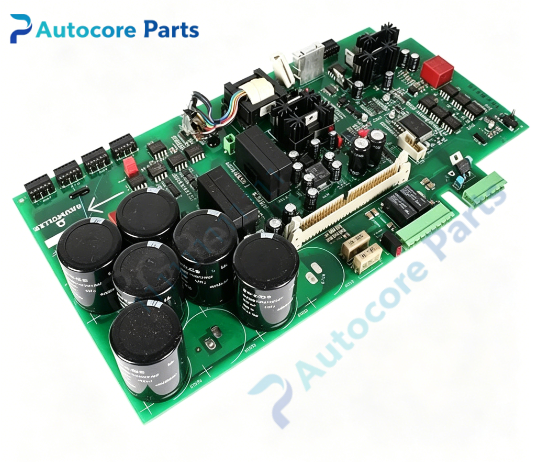

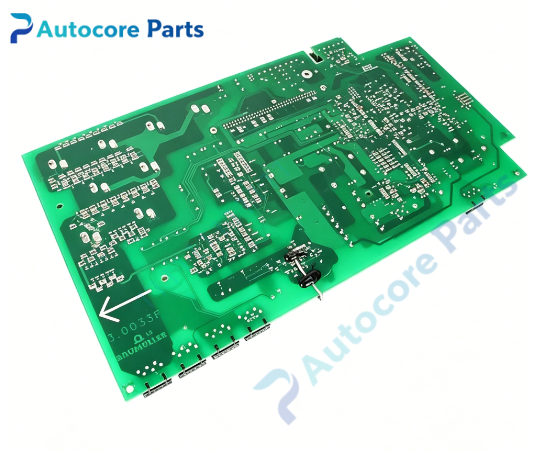

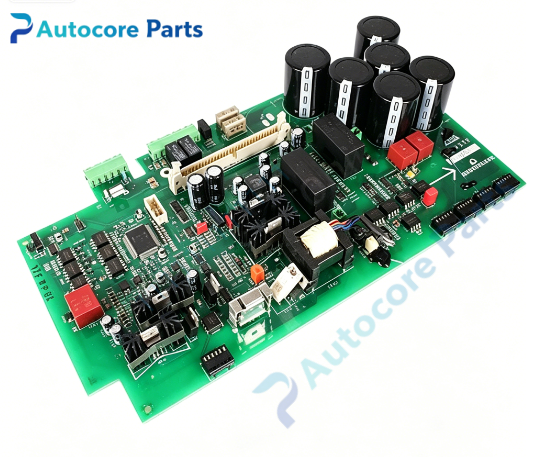

BAUMULLER 3.0033F 02.01 Drive Monitoring Board

Technical Specifications

Model: 3.0033F 02.01 Brand: BAUMULLER (Baumüller, Germany) Product Type: Servo Drive Internal Monitoring Printed Circuit Board Mounting: Installed inside BAUMULLER b maXX series servo drive housing Operating temperature: 0℃ ~ +60℃ Storage temperature: -20℃ ~ +70℃ Relative humidity: 5%~95%, non-condensing Protection: IP20 (when fully assembled inside drive enclosure)

System compatibility

3.0033F 02.01 is compatible with selected b maXX series servo drives from BAUMULLER. It is commonly used in printing, plastic forming, textile and metalworking machinery for drive system repair and component swap.

Function

3.0033F 02.01 is the monitoring PCB inside Baumüller servo drive. It samples DC bus voltage, output current and internal temperature signals, sends real-time measured values to the main control board. It triggers hardware protection signals when overvoltage, overcurrent or over-temperature occurs. It serves as a safeguard to prevent power stage damage during abnormal operating conditions. It is used to replace faulty monitoring boards in drive overhaul.

Installation

Cut off all high voltage power before disassembly. Open servo drive casing and fully discharge DC bus capacitors. Remove the old monitoring board, install 3.0033F 02.01 and tighten mounting screws. Reconnect power sampling headers and signal ribbon cables. Check signal continuity, power on and test drive protection response before formal production.

Interface

DC bus sampling terminals, current sensor header, temperature detection port, internal signal connector for 3.0033F 02.01 BAUMULLER monitoring board.

Feature

Original Baumüller monitoring circuit board, fast hardware protection response, high precision signal sampling, built-in surge suppression, compact internal mounting layout, industrial anti-interference design. This legacy spare part used for on-site maintenance of old BAUMULLER servo drive systems.

Diagnostic

Drive false overcurrent alarm after replacement: check current sensor wiring and board calibration for 3.0033F 02.01. No voltage sampling value: inspect DC bus terminal contact and board fuse. Intermittent protection trigger: verify soldering joints and electromagnetic interference.

Product Brief

3.0033F 02.01 is German BAUMULLER servo drive monitoring PCB. It samples voltage, current and temperature signals and activates hardware protection, classic spare part for legacy BAUMULLER machine drive overhaul.

Disclaimer: All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
