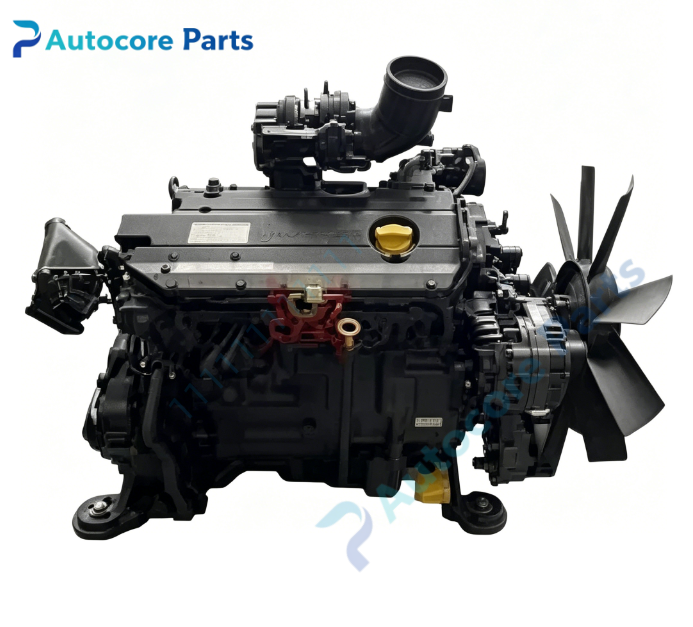

Atlas Copco TCD2013-L04 Diesel Power Module

Technical SpecificationsModel:TCD2013-L04 Brand:Atlas Copco Product Type:4-Cylinder Inline Water-Cooled Diesel Power Module Displacement:4.8 L Rated Power:120 kW @2300 rpm Bore × Stroke:108 mm ×130 mm Compression Ratio:18.1:1 Emission Standard:Tier3 / Stage IIIA Mounting:Base fixed installation for Atlas Copco construction equipment Operating temperature:-20℃ ~ +45℃ Storage temperature:-30℃ ~ +60℃ Relative humidity:5%~95%, non-condensing Weight:420 kg Dimension:880mm650mm920mm Protection:IP20

System compatibilityTCD2013-L04 belongs to Atlas Copco supporting power module, matched for Atlas Copco mobile air compressors, surface drill rigs and other heavy construction equipment. It connects with Atlas Copco machine controller system, real-time upload of engine operating parameters to PLC and monitoring system. Suitable for heavy-duty mobile machinery power replacement as industrial spare part.

FunctionTCD2013-L04 is heavy-duty water-cooled four-cylinder diesel power unit for Atlas Copco construction equipment. It provides stable mechanical power to drive screw compressor or hydraulic system, supports continuous heavy load operation. ECU monitors speed, temperature, oil pressure and fuel consumption in real time, with fault alarm and protection function. Widely used for Atlas Copco drilling rig and mobile compressor maintenance, serving as reliable power spare part.

InstallationCut off power and fuel supply before installation. Fix the power module on equipment base with shock absorber, connect fuel pipeline, cooling water circuit, exhaust pipe and wiring harness. Complete controller parameter matching and test run before formal operation.

InterfaceFuel inlet and outlet port, coolant inlet/outlet port, engine wiring harness connector, exhaust flange, power take-off port for TCD2013-L04 Atlas Copco diesel power module.

FeatureAtlas Copco TCD2013-L04 4-cylinder inline diesel power module, water cooling structure, low fuel consumption, strong overload capacity, stable performance under harsh field working conditions. Electronic controlled fuel injection, real-time fault monitoring, IP20 cabinet protection. This legacy industrial spare part used for Atlas Copco mobile equipment power system maintenance and replacement.

DiagnosticCannot start: check fuel supply, filter blockage, wiring harness and ECU power supply for TCD2013-L04. Power insufficient: check air filter, injector and turbocharger condition. Abnormal temperature: inspect coolant level, water pump and radiator. Communication abnormal: check harness, controller configuration and sensor signal of the power module. Fault alarm: read fault code via professional diagnostic tool.

Product BriefTCD2013-L04 is Atlas Copco supporting TCD2013 series four-cylinder inline water-cooled diesel power module. This power unit widely fitted on Atlas Copco drilling rig and mobile air compressor for heavy-duty construction machinery, electronic fuel injection design, stable power output, popular industrial spare part for field equipment overhaul.

Disclaimer:All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
