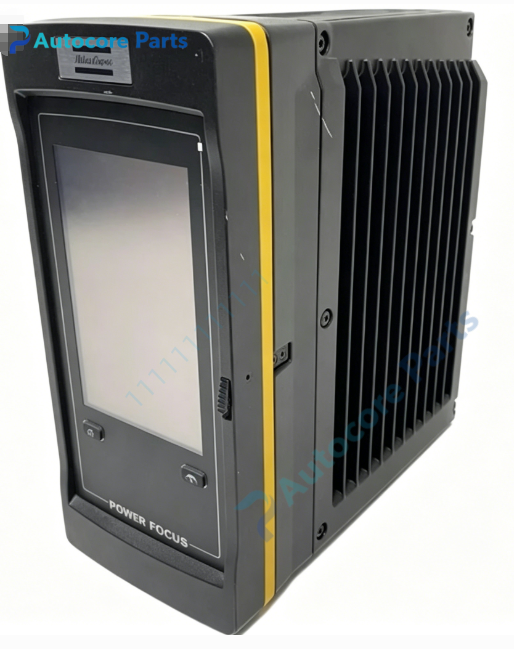

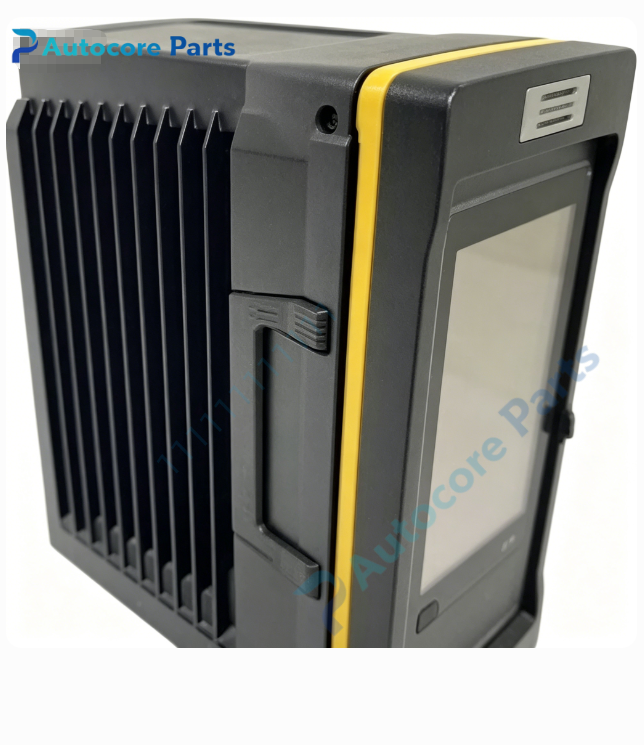

Atlas Copco PF6000#U9954D Tightening Controller

Technical SpecificationsModel:PF6000#U9954D Brand:Atlas Copco Product Type:Power Focus 6000 Intelligent Tightening Controller Power Supply:100-240V AC,50/60Hz,400W Mounting:Cabinet rack mount Operating temperature:0℃ ~ +45℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:11.5kg Dimension:440mm340mm180mm

System compatibilityPF6000#U9954D belongs to Atlas Copco Power Focus 6000 series intelligent tightening controller. It can connect up to 6 Atlas Copco electric nutrunner tools from 12 different tool families. Support multiple industrial communication protocols including Open Protocol, Ethernet/IP, Profinet, Profibus DP. It can communicate with PLC and MES system for fastening result upload, production traceability and remote parameter control.

FunctionPF6000#U9954D is high precision multi-tool torque-angle control unit for automated bolt assembly. It supports multiple advanced tightening strategies including TurboTight, TruAngle, multi-step tightening sequences, real-time torque-angle curve monitoring and OK/NOK fastening judgement. Dual software partition design allows offline firmware upgrade without production interruption. It stores massive fastening history records and supports parameter backup, built-in emergency stop safety relay, widely used for automotive and heavy machinery smart assembly lines.

InstallationCut off power before installation. Mount controller inside electrical cabinet. Connect AC power, tool cables and network wiring. Configure tightening parameters and communication settings via 7-inch touch screen or ToolsTalk 2 software. Complete tool calibration and test tightening before online operation.

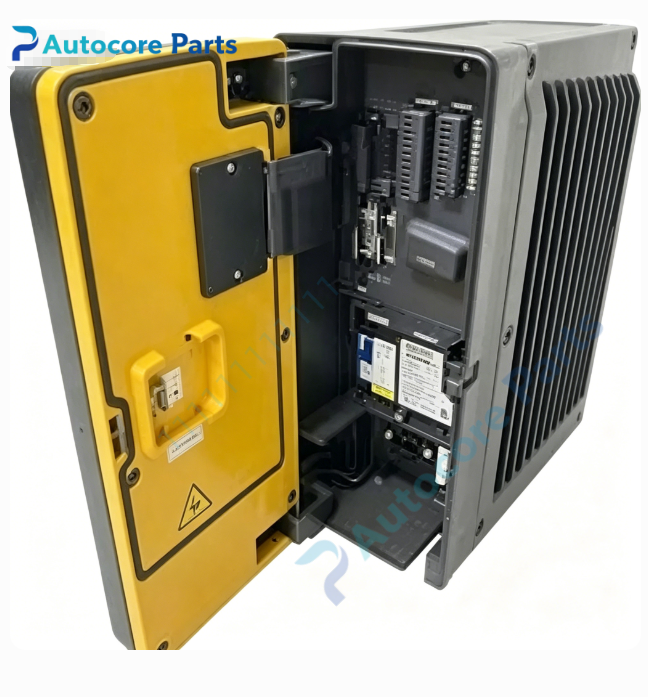

InterfaceMultiple tool drive ports, 24V digital I/O terminals, Ethernet port, fieldbus communication port, 7-inch touch screen HMI, status LED indicators, E-stop safety relay terminal.

FeatureAtlas Copco Power Focus6000 intelligent tightening controller, 7-inch color touchscreen, supports up to 6 tools, advanced TurboTight tightening algorithm, dual software partitions, multiple industrial bus options, real-time torque-angle monitoring, built-in E-stop safety relay, fastening data traceability, IP20 cabinet protection. Modern smart factory assembly controller, used for multi-station bolt tightening system maintenance and replacement.

DiagnosticController no power: check AC input, fuse and wiring. Tool communication failure: inspect tool cable, connector and tool enable signal. Tightening result deviation: verify tool calibration, tightening program and joint mechanical condition. Network communication loss: check network cable, IP address, PLC configuration and switch status. Touch screen display fault: check internal display connector and controller firmware.

Product BriefAtlas Copco PF6000#U9954D is Power Focus6000 intelligent torque tightening controller, widely used in automotive and machinery smart assembly production lines for multi-station bolt fastening control and factory network communication.

Disclaimer:All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
