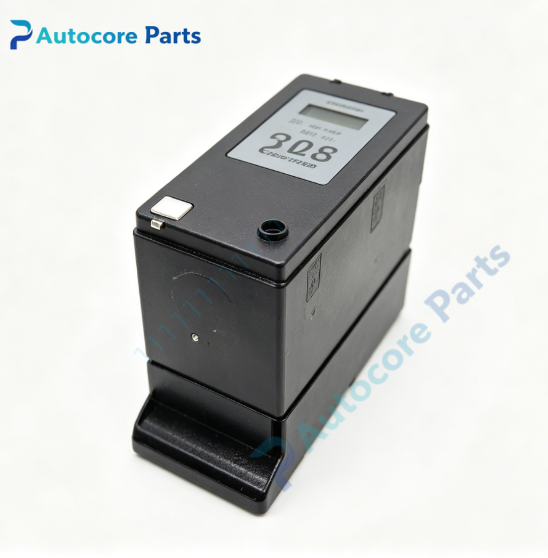

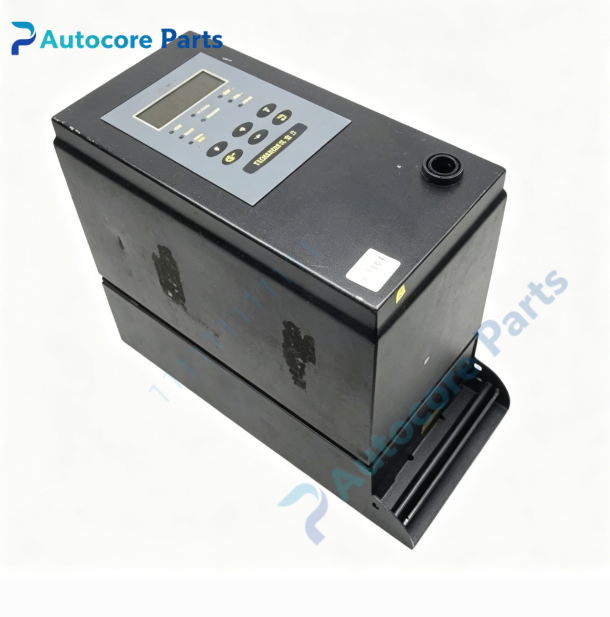

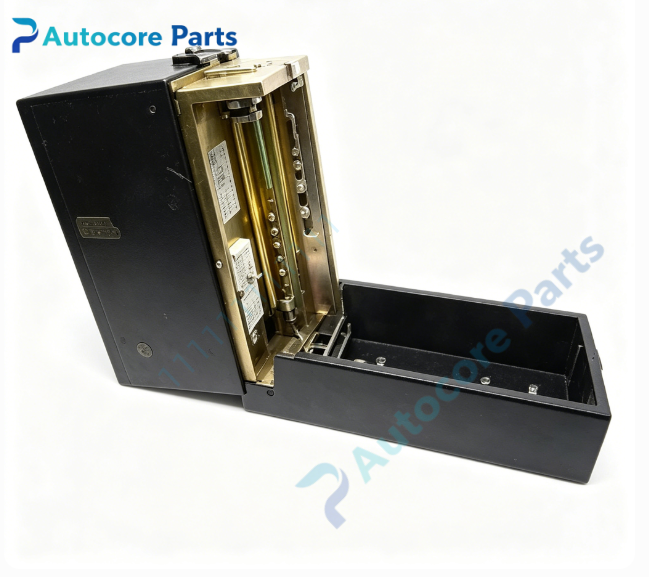

Atlas Copco PF3107-C-HW Tightening Controller

Technical SpecificationsModel:PF3107-C-HW Brand:Atlas Copco Product Type:Tensor 3-7 Basic Tightening Controller Power Supply:90-120/180-240V AC,50/60Hz,300W Mounting:Cabinet rack mount Operating temperature:0℃ ~ +45℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:9.6kg Dimension:410mm310mm165mm

System compatibilityPF3107-C-HW belongs to Atlas Copco Tensor 3-7 series single-tool tightening controller. Compatible with Tensor 3-7 series electric nutrunner tools. It is basic C version without Graph HMI, equipped with fieldbus expansion slot, support optional Profibus DP, DeviceNet communication modules. It can communicate with PLC and MES system for fastening result upload, production traceability and remote parameter control.

FunctionPF3107-C-HW is compact torque-angle control unit for automated bolt assembly. It supports multi-step tightening sequences, real-time torque-angle curve monitoring and OK/NOK fastening judgement. It stores fastening history records and supports parameter backup, built-in emergency stop safety relay, widely used for automotive component and machinery assembly stations.

InstallationCut off power before installation. Mount controller inside electrical cabinet. Connect AC power, tool motor cable and signal wiring. Install optional fieldbus module if required. Configure tightening programs via ToolsTalk software. Complete tool calibration and test tightening before online operation.

InterfaceSingle tool drive port, 24V digital I/O terminals, fieldbus expansion slot, basic display and operation keys, status LED indicators, E-stop safety relay terminal.

FeatureAtlas Copco Tensor3-7 torque controller, basic C version without Graph HMI, modular fieldbus expansion design, real-time torque-angle monitoring, built-in E-stop safety relay, fastening data storage, IP20 cabinet protection. Discontinued legacy spare part, used for single station bolt tightening system maintenance and replacement.

DiagnosticController no power: check AC input, fuse and wiring. Tool no rotation: inspect tool cable, motor winding and tool enable signal. Tightening result deviation: verify tool calibration, tightening program and joint mechanical condition. Fieldbus communication abnormal: check installed bus module, bus cable, node address and PLC configuration. Front panel display fault: check internal display connector and controller firmware.

Product BriefAtlas Copco PF3107-C-HW is Tensor3-7 basic torque tightening controller, widely used in automotive and machinery assembly production lines for single station bolt fastening control, supports optional fieldbus module for factory network communication.

Disclaimer:All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
