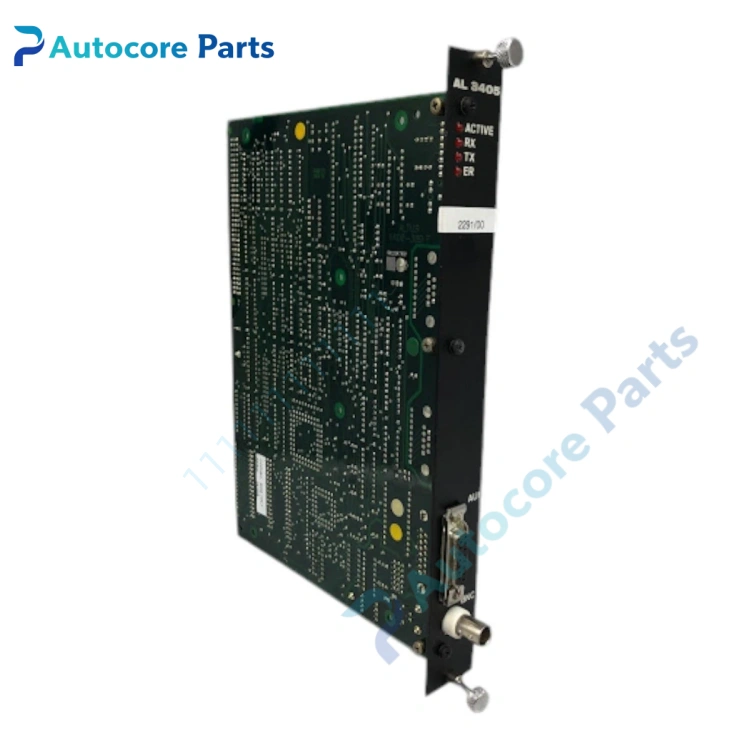

Altus AL3405 Communication Board

Feature & Principle

It is Altus AL3405 Ethernet communication interface board, used for Ponto series PLC control system. It adopts ALNET II industrial Ethernet protocol, realizes data interaction between controller and upper computer, HMI or other network nodes. It supports stable high-speed data reading and writing, rack hot plug design, widely used for marine and industrial automation control system networking. This board is obsolete, only for maintenance spare replacement.

Specifications

Model: AL3405 Brand: Altus Protocol: ALNET II Ethernet Applicable system: Altus Ponto PLC Installation: Rack plug-in Protection class: IP20 Application: Marine automation, industrial process control cabinet Certification: CE

Components & Diagnostics

Ethernet processing chip, network transceiver circuit, backplane gold finger, RJ45 interface, status LED. Common faults: network offline, communication packet loss, module not identified, interface circuit damage.

Product Brief

AL3405 communication board, Altus Ponto PLC ALNET II Ethernet spare widely used for marine automation control cabinet overhaul and replacement.
