Model: UNS2882A
Part No: 3BHE003855R0001
Power Supply: 24V DC (±15%), typical power consumption 6.8W
Applicable System: ABB UNITROL 5000 static excitation system
Main Function: Field analog & digital signal acquisition, output drive, signal conditioning, internal bus data exchange
I/O Channels: Multi‑channel DI/DO, analog input and analog output terminals
Communication: System internal high‑speed bus, interconnect with UNS4881b main control board
Isolation: 1.5kV AC galvanic isolation for field signal channels
Operating Temperature: ‑10℃ ~ +60℃; Storage temperature:‑40℃ ~ +85℃
Humidity: 5%‑95% RH, non‑condensing
Protection Class: IP20 (cabinet internal installation)
Mounting: Rack plug‑in installation for UNITROL5000 excitation cabinet
Dimension: 330mm × 250mm ×28mm; Weight: approx 0.58kg

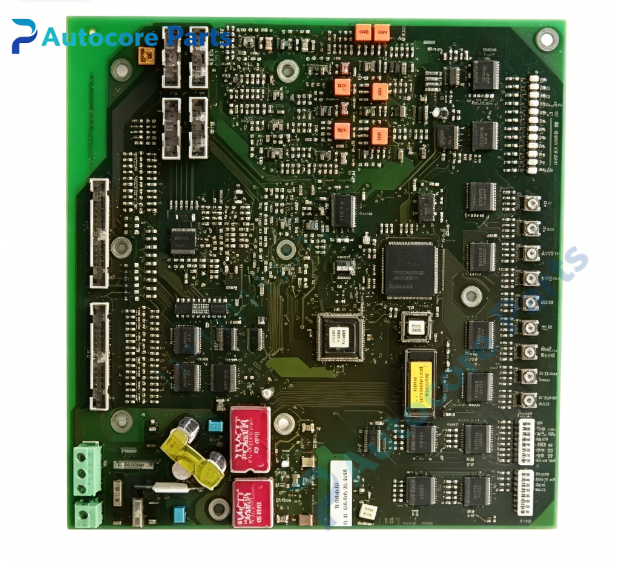

UNS2882A (3BHE003855R0001) is a dedicated I/O interface board for ABB UNITROL5000 generator static excitation system, working cooperatively with UNS4881b main control board.
This rack‑mount plug‑in board collects generator‑side voltage, current and status switching signals, executes output drive for excitation protection and auxiliary relay signals. It completes signal filtering and level conversion, transmits valid field data to the main control board, and receives control commands from main controller to drive on‑site actuators. Industrial‑grade EMC circuit design adapts to strong electromagnetic interference environment of thermal power and hydropower excitation cabinets. On‑board LED indicators display channel status, power supply and fault alarm for convenient on‑site inspection and troubleshooting.
Widely used in synchronous generator excitation cabinets of thermal power, hydropower and industrial captive power plants. When replacing spare parts, verify full part number and hardware revision to ensure system compatibility. Complete power‑off and discharge operations before installation to avoid module burnout and excitation system malfunction. Suitable for on‑site fault replacement and long‑term spare‑part stocking of existing UNITROL5000 excitation equipment.
