Products Description
Technical Specifications

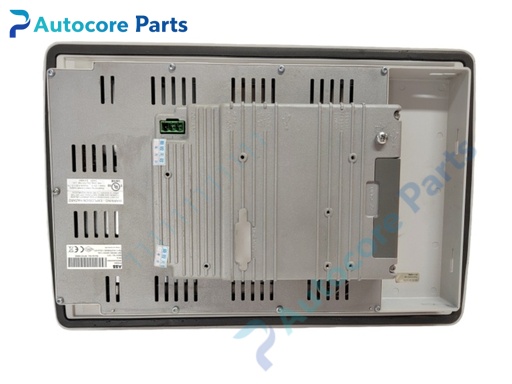

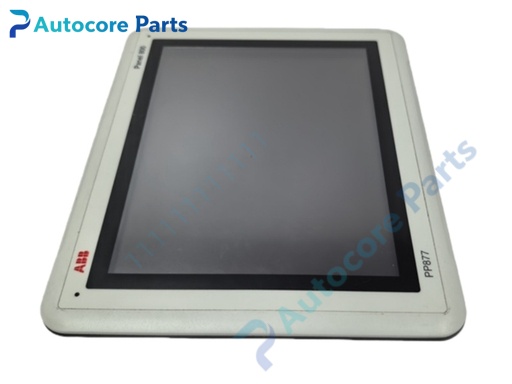

Model: PP877K (Part No:3BSE069274R1)
Series: ABB Panel800 Version6 Industrial HMI
Display:10.4‑inch TFT‑LCD, resolution 640×480 VGA, LED backlight
Operation: Resistive touch screen + integrated hard physical function keypad
CPU: ARM9 400 MHz processor
Memory:128 MB DDR2 RAM, 128 MB NAND Flash, SD‑card slot (max 2GB)
Supply:24V DC (18‑32V DC wide voltage tolerance)
Interfaces:1×shielded 10/100 Ethernet, USB2.0 Host, RS232, RS422/485 serial ports
Configuration Software: Panel Builder 800
Front panel protection: IP65, rear IP20
Operating Temperature:‑10℃ ~ +60℃
Applicable System: ABB System800xA, AC800M, Freelance DCS; supports Modbus RTU/TCP for third‑party automation devices
PP877K belongs to ABB Panel800 V6 product family. It combines resistive touch operation and dedicated physical function keys, suitable for heavy‑duty industrial sites. It supports process data display, real‑time alarm list, parameter modification, trend viewing and manual equipment control.
Engineers complete visualization configuration via Panel Builder800 software. It can connect to ABB mainstream DCS and controller platforms, and realize data communication with third‑party equipment through Modbus protocol. Die‑cast aluminum housing delivers good shock and vibration resistance. Front‑panel IP65 rating prevents dust and splash water for cabinet front mounting. The physical keypad allows reliable operation even when operators wear thick work gloves.
It is widely used in power, chemical, pulp & paper and water‑treatment control cabinets. Confirm compatibility of HMI project files before replacement. Disconnect 24 V DC power supply during disassembly and installation. Suitable for on‑site fault replacement and long‑term spare stocking for existing Panel800 HMI devices.
