Model: PFTL101B, Rated load:20.0kN
Part Number:3BSE004203R1
Measuring Direction: Horizontal force measurement
Overload Capacity:80kN (400% rated load, no permanent deformation)
Permitted Transverse Load:40kN
Accuracy: ±0.5% full scale
Sensing Principle: ABB Pressductor magneto‑elastic technology
Housing Material: Stainless steel
Protection Class: IP67
Operating Temperature:‑10℃ ~ +50℃
Mounting: Pillow‑block installation for roll bearing seats
Deflection:0.015mm
Weight: approx 2.3kg

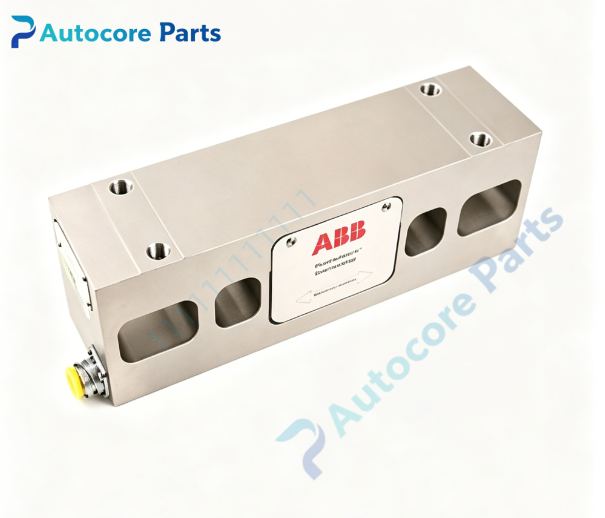

PFTL101B 20.0KN (3BSE004203R1) is ABB Pressductor pillow‑block horizontal tension load cell. It adopts magneto‑elastic sensing principle to detect horizontal force on roll bearing seats, effectively eliminating interference caused by roller self‑weight and realizing accurate web tension measurement.
Solid stainless steel construction provides excellent vibration resistance and high overload tolerance. IP67 protection grade adapts to dusty, humid industrial workshop conditions. It outputs force‑proport analog signal, works with ABB tension signal processing units to implement closed‑loop tension control for production lines. Pillow‑block structure simplifies on‑site installation and calibration work.
It is widely used in papermaking, metal rolling, coating and winding production processes. When replacing spare parts, verify complete model, rated load and part number. Install strictly according to the force direction marking on the sensor body. Suitable for on‑site fault replacement and long‑term spare‑part stocking of existing web tension measurement systems.
