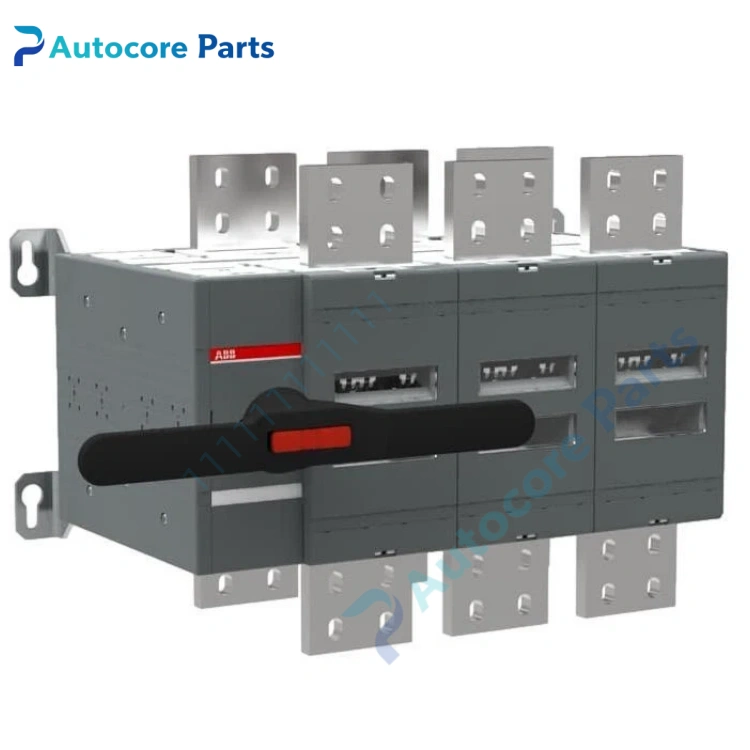

ABB OT3200E03CP Manual Changeover Switch

Feature & Principle

It is an open transition manual changeover switch with I-0-II three-position operation. It can switch between two independent power sources, the middle 0 position is isolation state. Equipped with padlockable handle and door interlock function to prevent misoperation. Suitable for manual switching of standby power supply in low voltage power distribution system.

Specifications

Model: 1SCA129156R1001 Type: OT3200E03CP Brand: ABB Rated current: 3200 A Pole: 3P Operation mode: Open transition Handle: IP65 pistol handle Position: I-0-II Standard: IEC 60947-3 Application: Dual power supply manual transfer Certification: CE

Components & Diagnostics

Switch main body, operating shaft, pistol handle, interlock mechanism, wiring terminals. Common faults: handle jamming, contact overheating, interlock failure, poor contact.

Product Brief

1SCA129156R1001 manual changeover switch, ABB dual power transfer spare widely used for industrial substation and building low voltage distribution cabinet maintenance and replacement.
