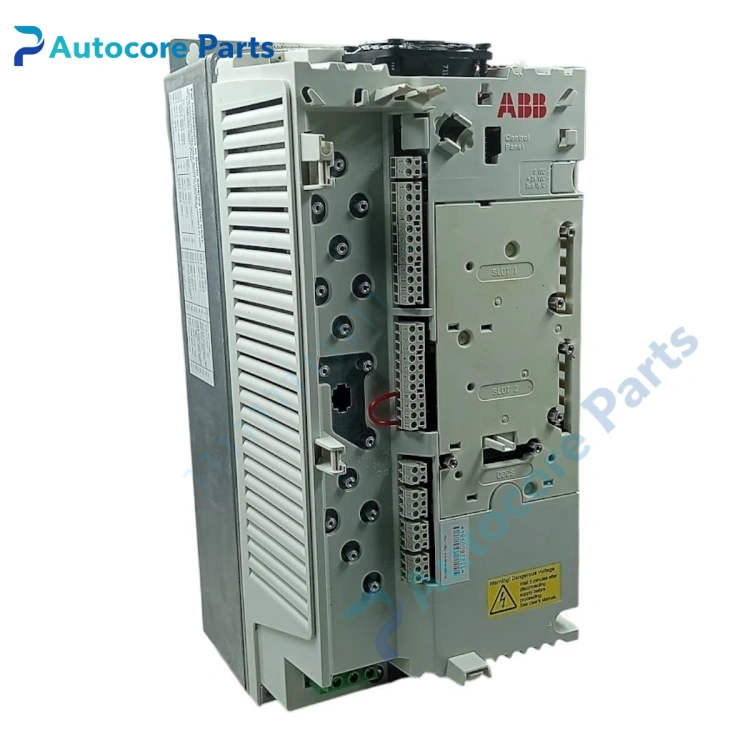

ABB ACS800-04-0016 Frequency Converter Module

Feature & Principle

It is ABB ACS800-04 series cabinet-mounted single drive module. It adopts DTC direct torque control technology, fast torque response and high control precision. It supports constant torque and variable torque loads, built-in multiple protection functions. It can be equipped with encoder module, communication adapter and braking unit, suitable for integrated cabinet design. This model is discontinued, used for maintenance replacement.

Specifications

Model: ACS800-04-0016 Brand: ABB Control mode: DTC direct torque control Rated voltage: 3AC 380~415V Installation: Cabinet rack mount Protection: Overcurrent, overvoltage, overload, overheat Enclosure: IP00 / IP20 optional Application: Conveyor, extruder, fan, pump industrial control cabinet Certification: CE, UL

Components & Diagnostics

IGBT power unit, main control board, current sampling circuit, drive board, status LED, terminal block. Common faults: output short circuit alarm, communication failure, overheating trip, IGBT damage.

Product Brief

ACS800-04-0016 drive module, ABB high-performance industrial VFD spare widely used for automation control cabinet overhaul and replacement.
